Decon E-Drive

From £5,295.00 Excl. VAT

  • VAT exempt
  • Free nationwide assessments, delivery and set-up

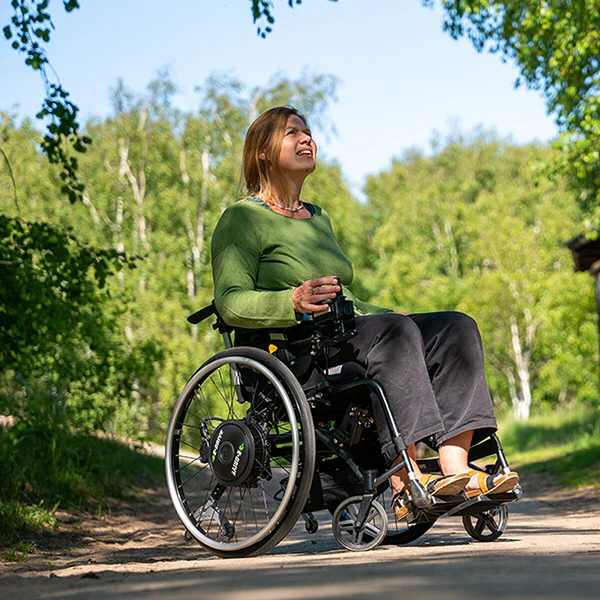

The E-Drive is a hub mounted, manual wheelchair power assist for easier everyday flexibility. Choose from user or attendant joy-stick control and simply switch back to manual propulsion as and when desired.

Power-assist flexibility

The E-Drive’s two 120w hub motors turn any manual wheelchair into an ultralight powerchair. This is an ideal option when you want to tackle slopes and various terrains, or to save energy when travelling further. It is also as suitable for indoor use as it is with outdoors.

Joystick control

A simple-to-use joystick controller can be placed at the front of a manual wheelchair for user control, or on the handlebars for attendant control. (Left or right mounted.)

An added option allows the front-mounted joystick to swing away for easier access to tables and desks, or extra space for wheelchair transfers if needed.

There are also various joystick tops available to suit your preference.

Good to know

The E-Drive can be mounted on 99% of manual wheelchairs, from tilt-in-space to active wheelchairs, and is compatible with a range of wheel sizes: 16”, 20”, 22”, 24”, 25”, 26”

With quick release axles, this wheelchair power add-on is easy to remove and suitable for both car and air travel, with a low weight of only 7kg.

  • Easy-access battery. The E-Drive comes with a Nickel Metal Hydride battery (NiMH) as standard, or you can upgrade to the Lithium-ion battery. Both are IATA approved for air travel.
  • Maximum battery range: NiMH 10 miles, Li-ion 18 miles
  • Normal charging time: 2–3 hours
  • The display on the LCD screen can be seen in sunlight when you’re out and about.

Brand

Decon

Technical Specifications

Engine 24V 120Wx2
Battery type Nickelmetallhybrid, 24Vx6,7 Ah (optional L i-ion, 25Vx11,8Ah)
Weight wheel (1pcs.) 7 kg
Totalweight 16 kg (incl NiMH batteri) , 17,5 kg (incl Li-iON batteri)
Increase seat width Up to 4 cm (total)
Wheel dimensions 16”, 20”, 22”, 24”, 25”, 26”
Air pressure 6 Bar, 600 kPa
Speed 0-6 km/h
Max range (with fully charged battery) 24″: ca NiMH 16 km, Li-ion ca. 30km            16″: 15 km NimH, 25 km Li-ion
Fuse 30 A (flat)
Max userweight Up to 125 kg
Max userweight “Heavy-duty” Up to 150 kg
Max gradient 6 degrees
CE marking In compliance with MDR 2017/745 class 1
User instructions See usermanual
Joystick Contactless sensing of single-chip
Lever resistance change Lever springs with different resistance levels
USB Port for phone charging Through integrated USB port (5V, 500 mA max.)
Display LCD (Visible in sunlight)
Program parameters Joystick or computer (Smart Tune)
Battery charger 100 to 240V AC, 50/60Hz
Power rating 37V. 26A (while charging)
Charging time Normal charging ca. 2-3 hours

Brochure

Download

Price list

Download
