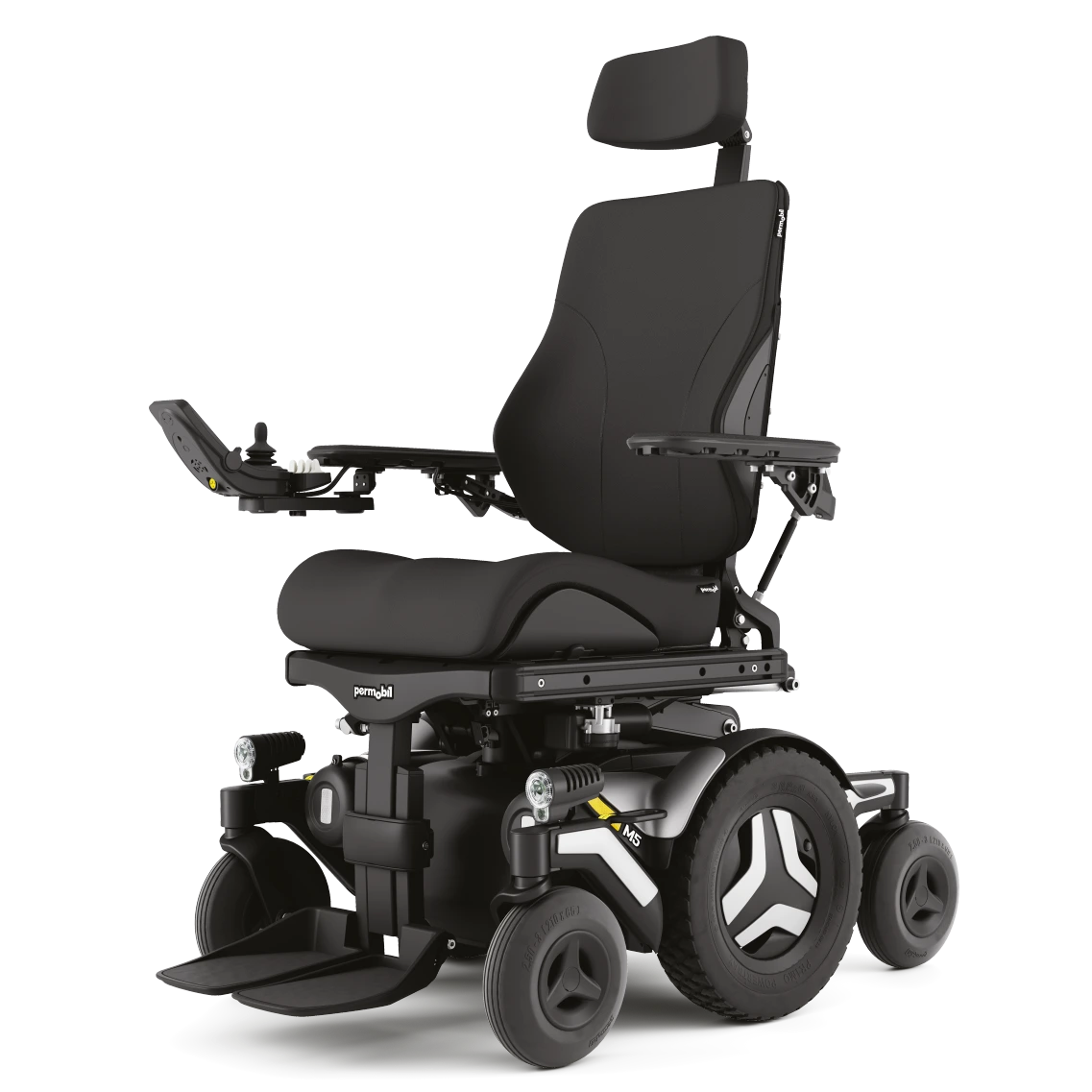

M5 Corpus

From £8,335.00

  • VAT exempt
  • Motability
  • Crash tested

Our friendly team are ready to discuss your specific needs.

Contact us

  • More speed, stronger motors, higher elevation, better reach and exceptional comfort
  • Agile suspension
  • ActiveReach, ActiveHeight & Corpus® Seating System
Permobil_logo

Made for more.

More adventure. Supreme comfort with true outdoor capability.

The M5 Corpus is made for more adventure, which gives it a capability all of its own for users who require more speed, stronger motors, higher elevation, better reach and exceptional comfort, stability and traction in varying driving situations. With powerful LED lights and increased driving range and battery life, the colourful new M5 Corpus is designed to give you much more.

Active Reach

Tilts the seat forward by up to 20° and raises it to extend functional reach. Helping to aid you in transfers and daily activities.

Active Height

Drive up to 5 kph while fully elevated! Combines seamlessly with Active Reach, the ultimate advantage in accessing your environment.

Corpus: the ultimate seat system

Improved comfort, pelvic positioning, lateral stability and immersion are key objectives of the new Corpus cushions. Corpus cushions feature softer dual-density foam on the backrest, a re-designed pelvic well. Unique Stretch-Air™, a breathable, water-resistant cushion fabric that is machine washable at 60°C.

More control

The agile independent suspension works on all 6 wheels, offering superior ride comfort, traction and stability. Take hold of your control when you are out exploring.

More drivability

The new Permobil powerchairs battery and Permobil VoltPro charger work together. Providing you with up to 25% greater driving distance up to 40km, optimised charging times and longer battery life. Even improving the new popular Permobil M3 Corpus powerchair.

Features

MORE COMFORT

The softer dual-density backrest cushion and re-designed pelvic well increase immersion into the seat, giving more comfort and stability.

MORE SUPPORT

BodiLink positioning accessories specially designed for the Corpus seating system (option)

MORE COLOUR

A fresh new aesthetic allows you to mix & match shroud/hub insert colour options to match your style.

MORE VISIBILITY

LED lights front and back are twice as bright for improved visibility.

MORE FREEDOM

to move in a greater variety of drive positions with enhanced stability.

MORE CARRYING CAPACITY

Optional luggage/essentials carrier

Brand

Permobil

Permobil_logo

Technical Specifications

Maximum User Weight136 kg | 300 lbs
Maximum Speed7.5 mph | 12 kph
Base Width25" | 63.5 cm
Base Length37.5" | 95 cm
Base Turning Radius21.5” | 55 cm
Ground Clearance3” | 7.6 cm
Weight Including Batteries192 kg | 423 lbs
Drive ElectronicsR-Net 120A
Seat-to-Floor Height17.5” | 44.5 cm
18.5” | 47 cm
19.5” | 49.5 cm
Seat ElevationOptional 14” | 35.5 cm
Drive Wheel14" | 35.5 cm
Caster Wheel8" | 20 cm
Posterior Seat Tilt0° – 50°
Anterior Seat Tilt
(ActiveReach)
5° | 10° | 20°
Power Elevating Legrest85° – 180°
Backrest Angle - Power Recline85° – 180°
Backrest Height20” | 51 cm
23 - 28” | 58.5 - 71 cm
Seat Depth14” – 22” | 35 - 56 cm
Seat Width17” – 23” | 43 - 58.5 cm

Battery and Charger System

It takes you further Premium performance

Peace of mind

Permobil has developed a new battery and charger
a system that offers you 25% more capacity than the previous battery.
A state-of-the-art charger contributes to 50% longer
battery life and improved all-around reliability.
So you can travel further, with more peace of mind.

Takes you further

than ever before. Compared to our previous battery system, the new battery system offers 25% more capacity.

Longer battery lifetime

Thanks to optimised charging with the new Permobil VoltPro charger, the battery life is increased by 50%.

Travel independently

The new Permobil batteries meet all applicable transportation requirements and are not subject to any restrictions.

Your safety

Tested and verified for use on Permobil power wheelchairs, our own design ensures the correct weight and centre of gravity, which is important for the stability of your chair.

Free MyPermobil app

You can connect with your chair and get access to real-time battery capacity and driving distance in kilometres and hours. The app features an integrated map with your travel history and shows your actual seating adjustment angles.

Features

INCREASED CAPACITY

The new Permobil battery delivers 25% more capacity.

LONGER DRIVING RANGE

so you can travel further with confidence

EXTENDED BATTERY LIFE

means fewer battery replacements

OPTIMISED CHARGING

for reliable performance

THE MyPermobil APP

gives the most up-to-date information on individual driving range estimates and battery charge

MARKED FOR YOUR SAFETY

Tested and verified for use on Permobil power wheelchairs

AFTERMARKET ACCESSORY

Permobil users with the previous battery system may be possible to update to the new Permobil battery system.

Brochure

Download

Order Form

Download

User Manual

Download

My Permobil App Brochure

Download

Battery and Charger Brochure

Download

Permobil M-Series Brochure

Download
