Mo-Vis Multi Joystick

From £1,365.00£1,550.00

  • VAT exempt
Clear

Multi Joystick Accessories

None M002-83 OMNI Cable Assembly 2000mm M002-05 Multi Joystick Ball (4mm) M002-53 Multi Joystick Cup (24 mm)

This set includes:
– Multi Joystick mounting plate with 4 screws (M002-06)
– Q2M Clamp D6 half clamp with bolt 14 mm (M004-04)
– Q2M Rod D6 50 mm (M004-70)
– Q2M Rod D6-D8 60 mm (M004-90)
Is part of the P002-61 or P002-62, but can also be purchased as a spare part.

None M002-18 Multi Joystick Mounting Set

A multifunctional operable joystick.

The Multi Joystick module can be connected directly to the wheelchair electronics to control the wheelchair functions. It is a small proportional joystick, requiring significantly less power and movement than a standard joystick.

It can easily be controlled by any body part, including finger, chin, lip… thanks to its flexibility. It is recommended for people with tetraplegia, neuromuscular diseases (ALS, MS…) and limited muscular force.

The Multi Joystick can be mounted anywhere in the wheelchair, allowing easy access for the user.

If you want to operate the Multi Joystick with your hand or fingers, you must ensure that your arm, wrist and hand are supported and that the joystick is mounted optimally. The joystick placement must be precise because the user generally has limited movement. The joystick can be integrated into a tray or mounted anywhere else for easy access (e.g. below the armrest).

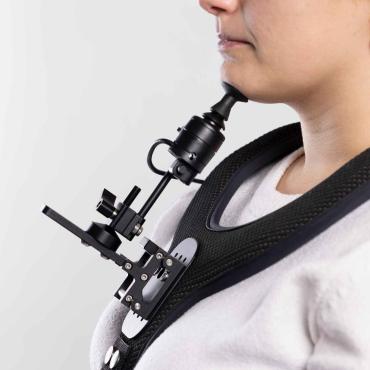

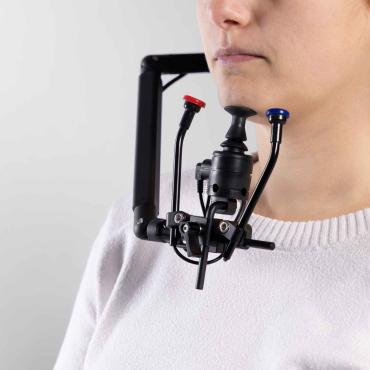

The Multi Joystick can also be mounted on a swing-away arm or harness for chin, lip or tongue control.

Mo-Vis Multi Joystick Features

Fully proportional, with reduced throw (8 mm) and force (ca. 50 gr)

Built-in a compact and discrete housing, with 2 3.5 mm jacks for switch input

Two switches can be linked to the separate interface: (red) on/off power wheelchair – (yellow) mode of the power wheelchair

Fully adjustable to individual possibilities and needs with well-thought-out electronics (mini USB connection)

Compatible with multiple types of wheelchair electronics

It has an LED light on the interface, which will start to flash green in case of error or orange in case of active tilt

Add more intelligence

The interface has a mini USB connection to connect the Multi Joystick to the mo-vis Configurator and add additional intelligence. Interesting features are the Road Compensation and the Tilt Setting.

Compatibility

The Multi Joystick is available in the following versions:

R-net version with an R-net bus cable

Omni version with SUB D9 connector. This can connect the mo-vis joystick directly to the Omni(2) Interface of Curtiss-Wright. However, you can also connect the Omni joystick with another interface to ensure compatibility with Dynamic Controls (DX, LiNX) and Curtis Instruments (Q-Logic).

LiNX version with a LiNX bus cable

Brand

Mo-Vis

User Manual

Download

Installation Manual

Download

Brochure

Download
