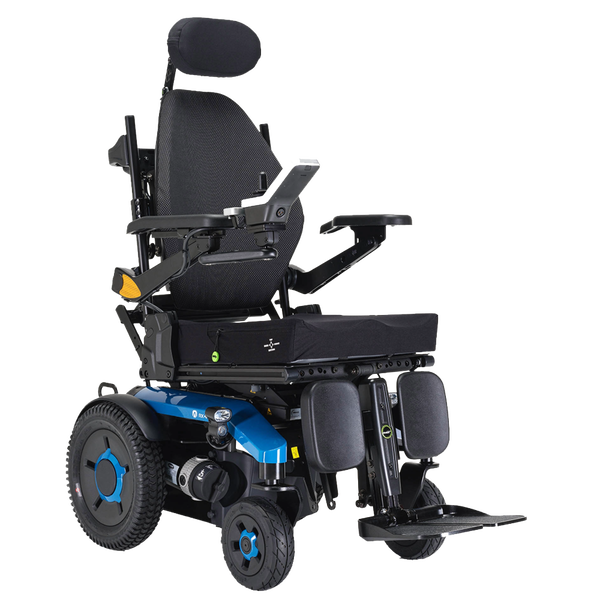

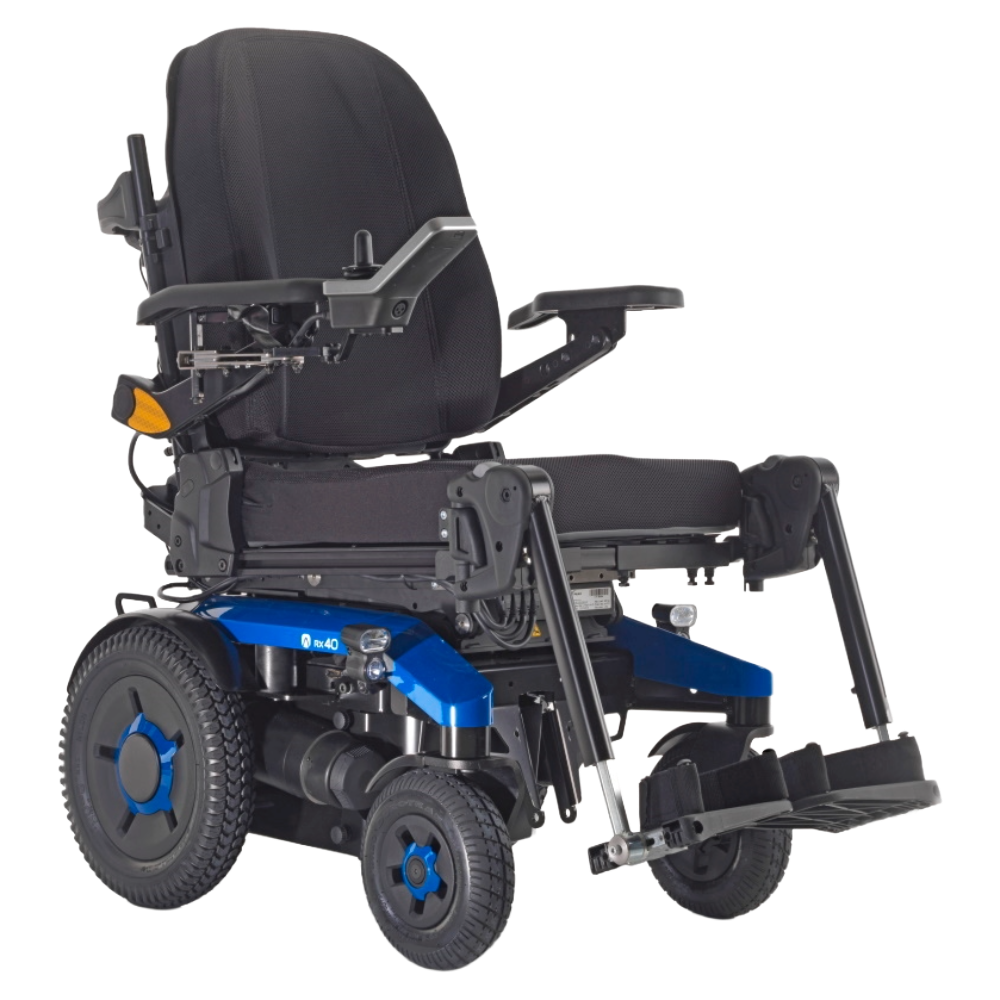

Invacare AVIVA RX40 | RX40 HD

From Price range: £4,521.00 through £6,234.00

VAT exempt
Motability
Crash tested
Nationwide assessments, delivery and set-up

Model	Clear

Design. Technology. Performance.

The AVIVA RX40 range from Recare combines sleek design, cutting-edge technology, and a compact rear-wheel drive base to provide a confident, adaptable powerchair experience. From the versatile RX40 to the supportive Modulite and the reinforced HD models, this lineup is engineered to offer high-performance mobility and enhanced personalisation.

SKU: N/A Categories: Bariatric Mobility, Bariatric Powerchair, Bariatric Powerchairs, Mobility, Motability, Powerchairs, Rear-Wheel-Drive Powerchairs Tags: Assessment Required, Configurable, Crash-Tested, Invacare, Made-to-Measure, Motability, Powerchair, Powered Wheelchair, Rear-Wheel-Drive

Availability & Delivery: While many of our products are kept in stock, certain items are sourced directly from our suppliers and may have lead times of up to 6 weeks. If you require delivery by a specific date, please get in touch before ordering so we can confirm current availability.

Designed for your demanding lifestyles

The RX40 is the latest rear-wheel-drive electric wheelchair in the AVIVA range, engineered for users who want full indoor manoeuvrability without sacrificing outdoor capability. The Invacare AVIVA RX40 & RX40 HD models are designed to meet a variety of user needs.

Performance features include:

Powerful rear-wheel drive for stability on uneven terrain
Superior torque and traction for outdoor use
Compact frame for excellent indoor navigation
Full suspension system for a smooth and comfortable ride

Key Features

Rear-Wheel Drive Power

Delivering a strong, stable ride, the Invacare AVIVA RX40 & RX40 HD’s rear-wheel drive ensures confident handling on uneven ground and tight indoor manoeuvres, with speeds of up to 8 mph and a range of up to 47 km.

Modulite Seating System

The Modulite and HD Modulite models feature a modular seating system with adjustable seat width, depth, backrests, armrests, and tilt options of up to 50°. Moreover, these options are designed to meet the complex postural needs. They also enhance user comfort.

Compact, Modern Design

A low seat height and tight turning radius make the RX40 ideal for indoor navigation.

CTC Suspension System

Unique to the AVIVA line, the CTC suspension absorbs vibration and keeps all four wheels grounded, ensuring a smooth and stable ride across varied terrain.

Intuitive Controls & Connectivity

Includes a 3.5” touchscreen, Bluetooth^® connectivity, and a wide range of control inputs—from standard joysticks to head arrays and proximity switches. Furthermore, the system adapts to your habits for a more personalised experience.

Model Variants at a Glance

Model	Key Benefits
RX40	Compact base, stylish design, ideal for indoor/outdoor use
RX40 Modulite	Fully adjustable Modulite seating system for enhanced support
RX40 HD	Higher weight capacity up to 160kg with reinforced frame
RX40 HD Modulite	Combination of HD strength & Modulite seating customisation

Technical Highlights

Range: Up to 47 km
Slope Capability: 6° / 10.5%
Battery: 60 / 73.5 Ah options

Who Is It For?

The AVIVA RX40 series is designed for people who require reliable, long-range power mobility with advanced seating, comfort, positioning, and control. For navigating indoors, commuting outdoors, or requiring heavy-duty support, there’s a model to meet your specific needs.

Need some help?

Contact us — Recare’s expert consultants stay up to date with the latest power mobility products and can arrange a short initial call to guide you through the most suitable options for your personalised needs. As a trusted family-run business, our focus is on supporting your independence and quality of life.

See the Recare Powerchair Guide to learn more.

Looking to Customise Your Powerchair?

Explore our full range of powerchair parts and accessories — including control upgrades, weather protection, batteries, tyres and everyday enhancements designed to integrate seamlessly with your powered wheelchair.

Brand

Invacare

Invacare manufactures wheelchairs, powered seating products, electronics and accessories. A quality range of products that offer style and provide all the options to satisfy the most demanding users.

	RX40 Modulite	RX40 Ultra	RX40 HD	RX40 HD Modulite
Seat Width	13" - 21" \| 33 - 53 cm	16" - 22" \| 41 - 56 cm	13" - 21" \| 33 - 53 cm	21" - 21.5" \| 53 - 55 cm
Seat Depth	16" - 20" \| 41 - 51 cm	16" - 23" \| 41 - 58 cm	16" - 20" \| 41 - 51 cm	20" - 23" \| 51 - 58 cm
Seat to Floor Height	17" - 19" \| 43 - 48 cm	16.5" - 27" \| 42 - 69 cm	17 - 19" \| 43 - 49 cm	17" - 19" \| 43 - 48 cm
Backrest Height	19 - 21" \| 48 - 54 cm	19 - 21" \| 48 - 54 cm	17 - 31" \| 40 - 79 cm	21" \| 54 cm
Length of legrests	9" - 18" \| 28 - 46 cm	11" - 18" \| 28 - 46 cm	9 - 18" \| 28 - 46 cm	9" - 18" \| 28 - 46 cm
Armrest Height	9" - 14" \| 23 - 36 cm	9" - 14" \| 23 - 40 cm	9 - 14" \| 23 - 36 cm	9.5" - 14" \| 24 - 36 cm
Total Length (without footrests)	33" \| 83 cm	33" \| 83 cm	33" \| 83 cm	33" \| 83 cm
Total Height	39" - 53" \| 100 - 134 cm	34" - 48" \| 110 - 121 cm	39 - 53" \| 100 - 134 cm	39" - 53" \| 100 - 134 cm
Seat Tilt	0° - 45°	0° - 50°	0° - 30°	0° - 30°
Base Width	22" \| 56 cm	22" \| 56 cm	25" \| 64 cm	25" \| 64 cm
Maximum Obstacle Height	4" \| 10 cm	4" \| 10 cm	4" \| 10 cm	4" \| 10 cm
Maximum Safe Slope	6° - 10°	6° / 10.5%	6° - 10°	6° - 10°
Speed	8 mph \| 12 kph	8 mph \| 12 kph	8 mph \| 12 kph	8 mph \| 12 kph
Range	47 km \| 29 miles	37 km \| 23 miles	47 km \| 29 miles	47 km \| 29 miles
Turning Circle	59 - 83" \| 150 - 209 cm	78 - 84" \| 198 - 211 cm	59 - 83" \| 150 - 209 cm	59 - 113" \| 150 - 286 cm
Battery	60 Ah 73.5 Ah	60 Ah 73.5 Ah	60 Ah 73.5 Ah	60 Ah 73.5 Ah
Backrest Angle	90° - 120°	90° - 120°	90 - 120 degrees	90° - 120°
Maximum User Weight	136 kg \| 300 lbs	136 kg \| 300 lbs	160 kg \| 352 lbs	160 kg \| 352 lbs
Total Max. Weight	185 kg \| 408 lbs	191 kg \| 422 lbs	485 kg \| 1069 lbs	185 kg \| 408 lbs
CRASH TESTED	YES	YES	YES	YES

Powered Wheelchair Maintenance

Maintaining your powerchair is essential for safety, performance, and longevity. Following this routine maintenance schedule, you can ensure your powerchair stays in peak condition and ready for everyday use or more adventurous journeys.

Daily Checks

Unusual noises or vibrations

Tyres: wear, damage or low pressure

Weekly Checks

Battery charging fully

Tyre pressure and tread

Check that the powered wheelchair functions are all working as expected

Monthly Checks

Drive wheels and castors are clean and undamaged

Battery cables and joystick connections

Lights, indicators and horn (if applicable)

Annual Servicing

Book your routine powerchair service with Recare's experienced technicians. This is a full, comprehensive inspection and service to ensure ongoing reliability and comfort for the lifetime of your powerchair.

Need Expert Servicing or Repairs?

Recare offers professional maintenance and repairs for all types of powered wheelchairs. Whether it's a routine service, repairs, parts and accessories, our dedicated team is here to help.

Email: info@recare.co.uk
Call: 01993 880200

Trust Recare to keep your powerchair moving—safely and reliably, every day.
