Ottobock Dino 3 Seating Wheelbase

From £2,279.00

  • VAT exempt

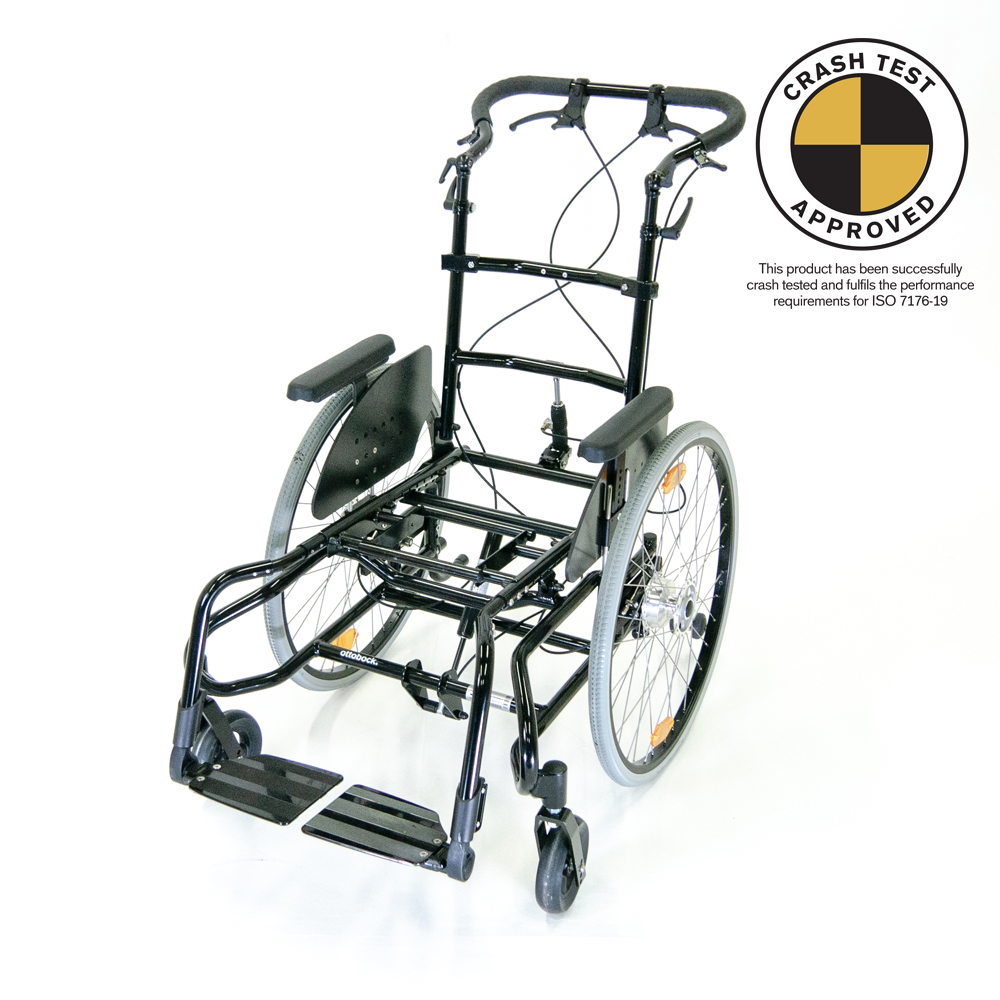

  • Crash tested
  • Nationwide assessments, delivery and set-up

Our friendly team are ready to discuss your specific needs.

Contact us?

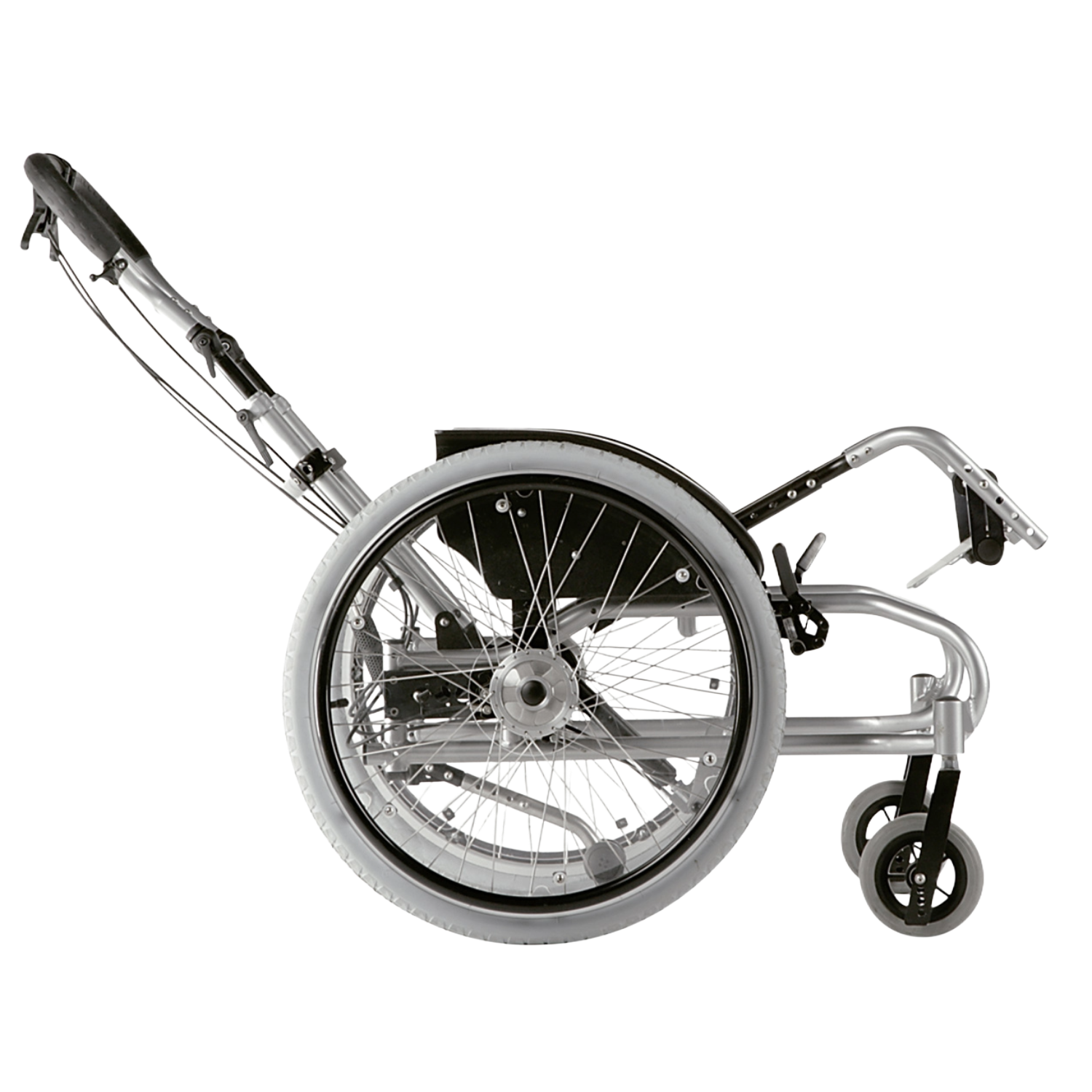

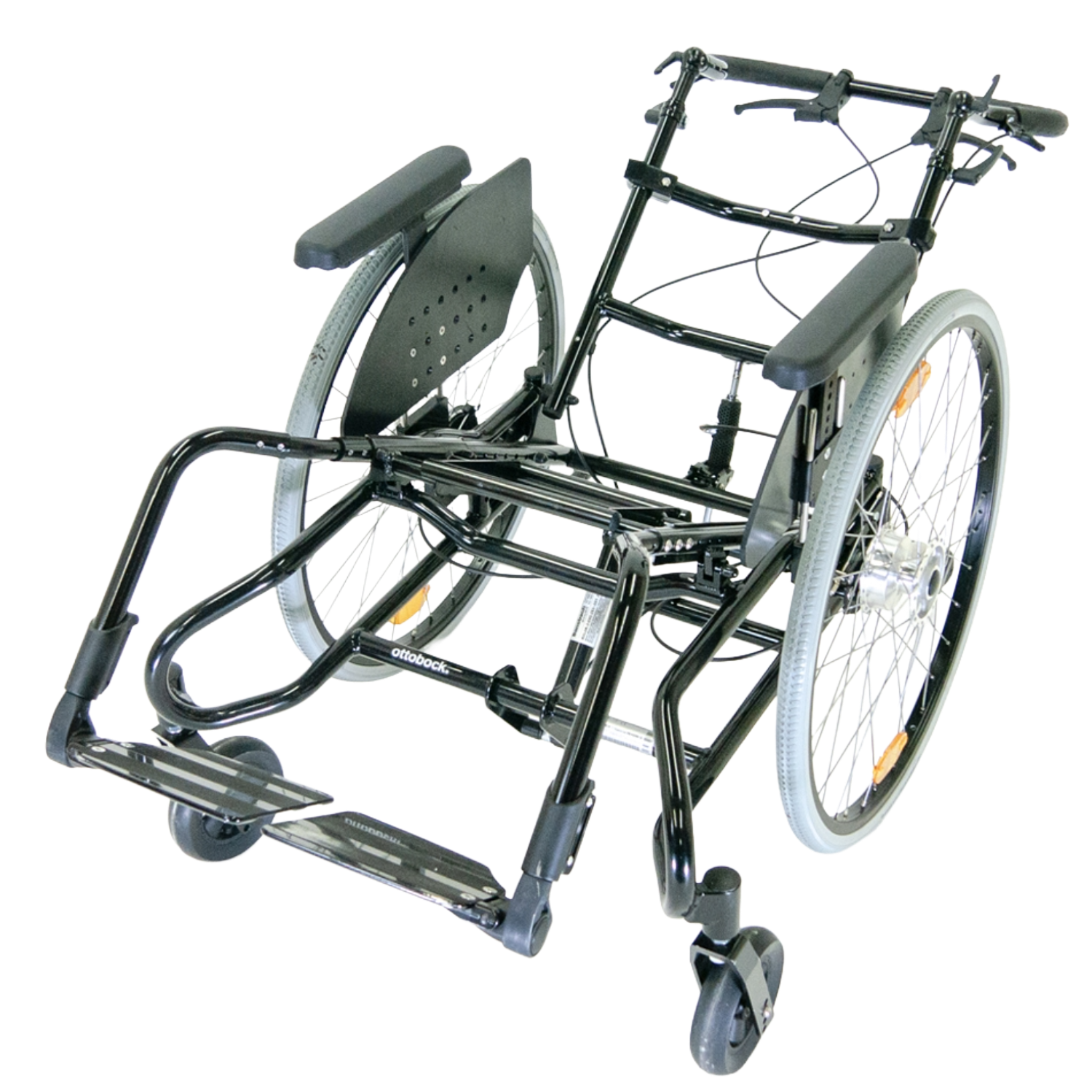

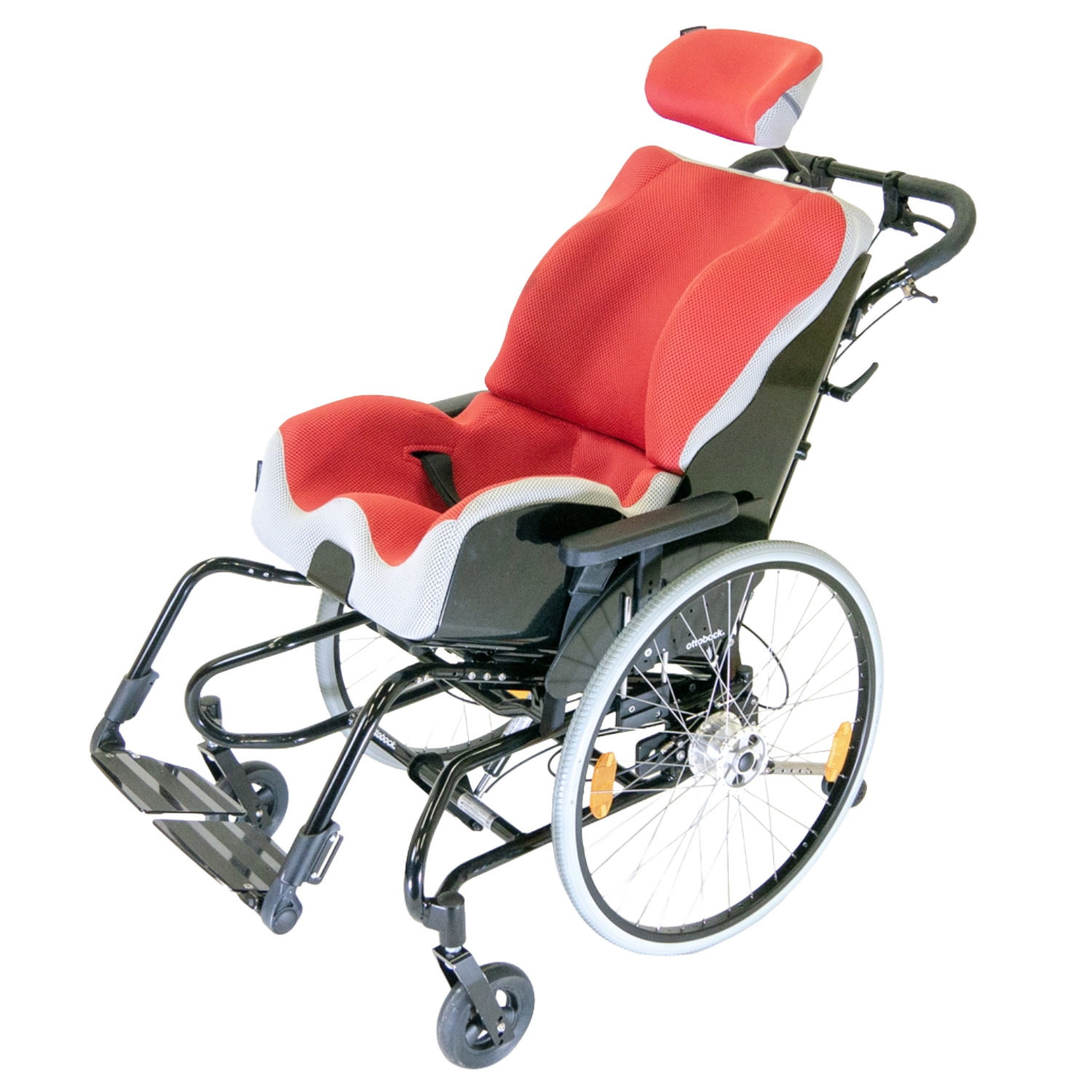

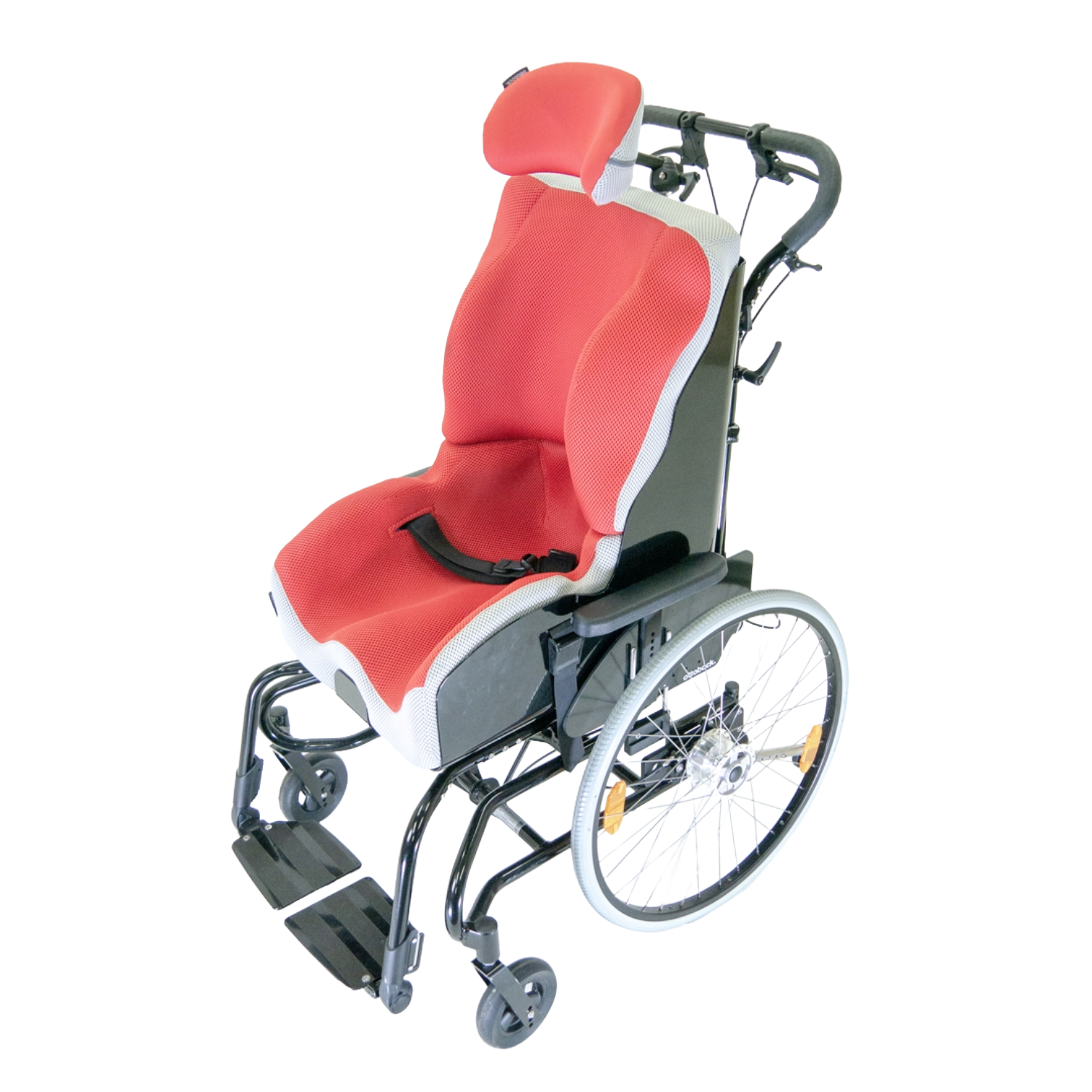

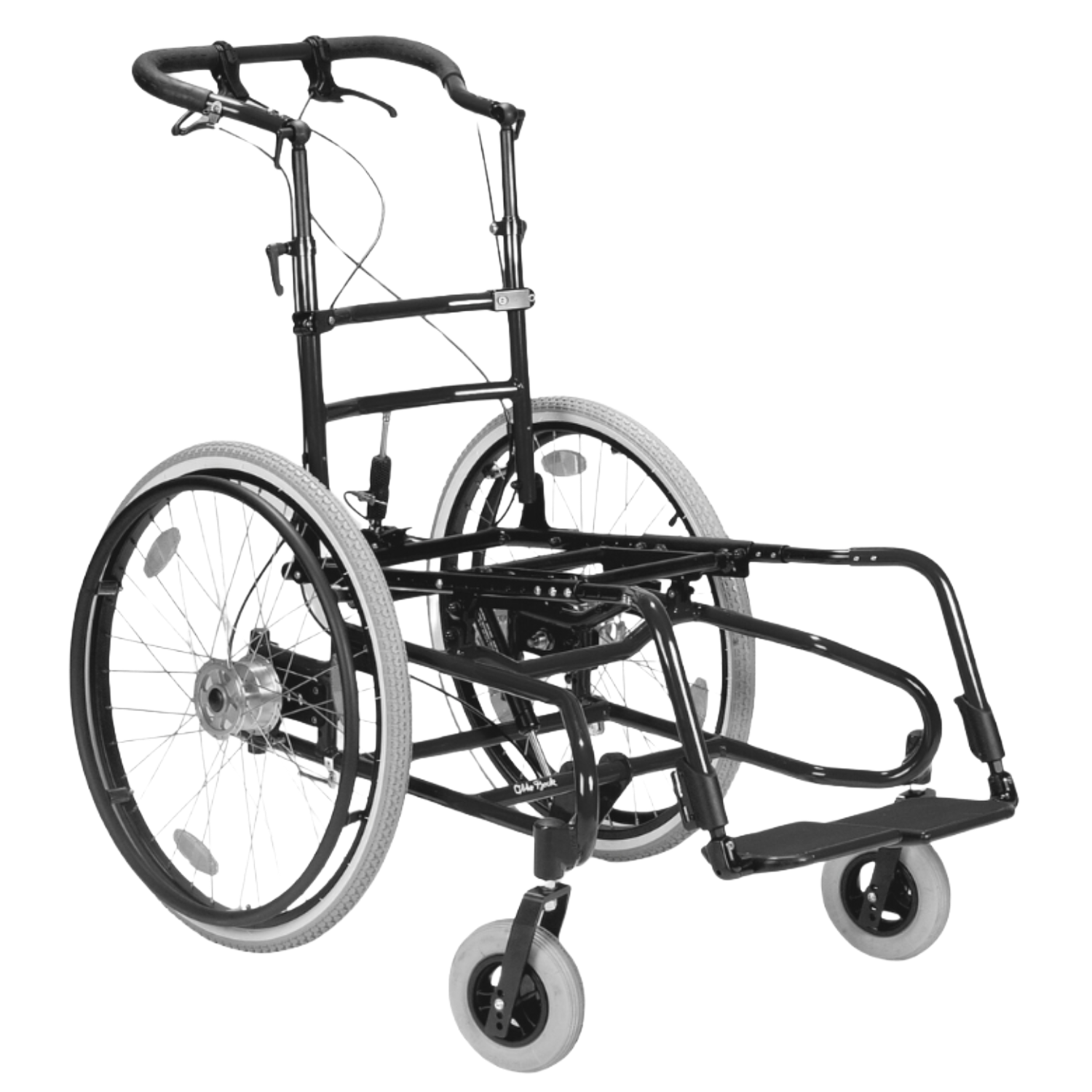

Seating solutions wheelbase with 30° tilt

The Ottobock Dino 3 Wheelbase from Recare is a highly adaptable mobility base created to accommodate a wide range of specialist seating systems. It provides a stable and supportive foundation, making it an excellent choice for wheelchair users with complex postural needs who require tailored seating solutions.

Availability & Delivery: While many of our products are kept in stock, certain items are sourced directly from our suppliers and may have lead times of up to 6 weeks. If you require delivery by a specific date, please get in touch before ordering so we can confirm current availability.

Key Features

  • Specialist compatibility – designed for integration with multiple seating systems.

  • Robust construction – ensures stability and safety in daily use.

  • Tilt and height adjustment – promotes pressure relief and postural support.

  • Indoor and outdoor versatility – manoeuvrable at home and stable on pavements.

  • Transport-friendly design – suitable for transfers and storage.

Benefits

The Dino 3 Wheelbase is a practical choice for users who require custom seating configurations for medical or therapeutic reasons. Its flexibility supports optimal posture, enhances comfort, and allows independence in everyday activities.

Compare Ottobock Dino 3 Vs. Discovery Wheelbase

Feature

Ottobock Dino 3 Wheelbase

Ottobock Discovery Wheelbase

Design purpose

Built for complex seating systems with high adjustability Versatile base for a range of standard and specialist seating

Adjustability

Extensive tilt and height options for clinical needs Moderate tilt and height adjustment for comfort and support

Stability

Heavy-duty, robust frame for maximum safety Strong and stable, designed for everyday use indoors and outdoors

User needs

Suited to wheelchair users with complex postural or medical requirements Ideal for users needing a flexible but less clinical seating solution

Environment

Effective indoors and outdoors, with a focus on clinical support Balanced for both home and community mobility

Compatibility

Works with highly specialised seating systems Compatible with a wide range of standard and specialist seating

Which One Should You Choose?

  • Choose the Ottobock Dino 3 Wheelbase if you require a highly adaptable and clinically focused base for complex postural support and specialist seating integration.

  • Choose the Ottobock Discovery Wheelbase if you need a versatile, everyday solution that balances stability, adjustability, and comfort for regular use indoors and outdoors.

Why Choose Recare for Your Seating Needs?

✔ Experienced seating specialists collaborating with healthcare professionals.
✔ Tailored solutions for wheelchair and powerchair users to prevent pressure ulcers.
✔ State-of-the-art pressure mapping and 3D seating technology.
✔ In-clinic and at-home assessments.

👉 Book your seating assessment today! Contact Recare to discuss your needs with our expert team.

Need some help?

Contact us - Recare’s expert consultants stay up to date with the latest mobility products and can arrange a short initial call to guide you through suitable options for your personalised needs. As a trusted family-run business, our focus is on supporting your independence and quality of life.

Read the Recare Wheelchair Guide to learn more.

Looking to customise your wheelchair?

Explore our range of wheelchair parts and accessories. This includes braking systems, outdoor weather protection, spare parts, and practical upgrades. These are designed to work seamlessly with your chair.

Brand

Ottobock

Ottobock mobility offers expertly engineered powerchairs, wheelchairs and seating systems designed to support independence and comfort in daily life. Ottobock mobility products combine innovation, stability, and ergonomic support. With user-focused designs and high performance, Ottobock empowers individuals with reliable mobility solutions suited to their lifestyle.

Size 0Size 1
Seat Base Width12" | 30 cm14" | 36 cm
Max Load Capacity120 kg | 265 lbs120 kg | 265 lbs
Seat Depth (adaptable)14 - 17" | 36 - 44cm
16 - 19" | 41 - 49cm
14 - 17" | 36 - 44cm
16 - 19" | 41 - 49cm
Rear Wheels
Transit
12" | 31 cm12" | 31 cm
Rear Wheels
Self Propel
22" | 56 cm
24" | 61 cm
22" | 56 cm
24" | 61 cm
Seat Tube Height 17 - 18" | 43 - 46 cm17 - 18" | 43 - 46 cm
Seat Tilt-5° - 30°-5° - 30°
Back Angle80° - 120°80° - 120°
Push Handle Adjustable by6" | 15 cm6" | 15 cm
Size 2Size 3
Seat Base Width16" | 40 cm17" | 44 cm
Max Load Capacity120 kg | 265 lbs120 kg | 265 lbs
Seat Depth (adaptable)14 - 17" | 36 - 44cm
16 - 19" | 41 - 49cm
14 - 17" | 36 - 44cm
16 - 19" | 41 - 49cm
Rear Wheels
Transit
12" | 31 cm12" | 31 cm
Rear Wheels
Self Propel
22" | 56 cm
24" | 61 cm
22" | 56 cm
24" | 61 cm
Seat Tube Height 17 - 19" | 43 - 49 cm17 - 19" | 43 - 49 cm
Seat Tilt-5° - 30°-5° - 30°
Back Angle80° - 120°80° - 120°
Push Handle Adjustable by6" | 15 cm6" | 15 cm

Brochure

Download

Order Form

Download

User Manual

Download

Manual Wheelchair Maintenance

Maintain Peak Performance with Regular Servicing

Regular maintenance is essential to keep your wheelchair performing at its best. By following this simple checklist, you can extend the life of your wheelchair and ensure your safety and comfort.

Daily Checks

  • Ensure the wheelchair rolls without resistance.
  • Check for vibrations, unusual noises, or any changes you notice.
  • Confirm that the wheel locks are working correctly.
  • Check the tyres: low pressure, flat spots, or signs of wear.
  • Listen for irregular noises or rattles that may indicate loose components.

Weekly Checks

  • Use a tyre gauge to check the tyre pressure.
  • Check the tension of the seat upholstery.
    • It should maintain a straight angle when the wheelchair is open and positioned.

Tyre Pressure Adjustment

  • Tyre pressure adjustments with the appropriate tools.
  • Maintaining the correct pressure is crucial for smooth rolling and improved manoeuvrability.

Monthly Checks

  • Inspect the wheel alignment to ensure proper tracking.
  • Check the fork bearings to confirm they are moving freely without stiffness.

Annual Servicing

Book your routine wheelchair service with Recare's experienced technicians. This is a full, comprehensive inspection and service to ensure ongoing reliability and comfort for the lifetime of your powerchair.


Need Expert Servicing or Repairs?

Recare offers professional maintenance and repairs for all types of manual wheelchairs. Whether it's a routine service, repairs, parts and accessories, our dedicated team is here to help.

Email: info@recare.co.uk
Call: 01993 880200

By following this maintenance routine, you can enjoy a smoother, safer, and more reliable wheelchair experience every day.
