Air-sprung rear axle with Wolturnus’ Link system
What sets W5 Suspension apart is its design featuring an air-sprung rear axle with Wolturnus’ Link system, which is connected to the wheelchair’s rear wheels. The wheels flex when the user drives over uneven surfaces and bumps, providing a smoother ride. This wheelchair is particularly suitable for active users who require ongoing seating position adjustment and smooth driving characteristics. It can be particularly beneficial for wheelchair users with pain problems in the back
- Fully welded rear axle
- Suspension rear axle for comfort
- Designed suspension with Wolturnus Link system
- Adjustable air suspension
- Fixed or adjustable backrest
- Maximum user weight: 150 kg

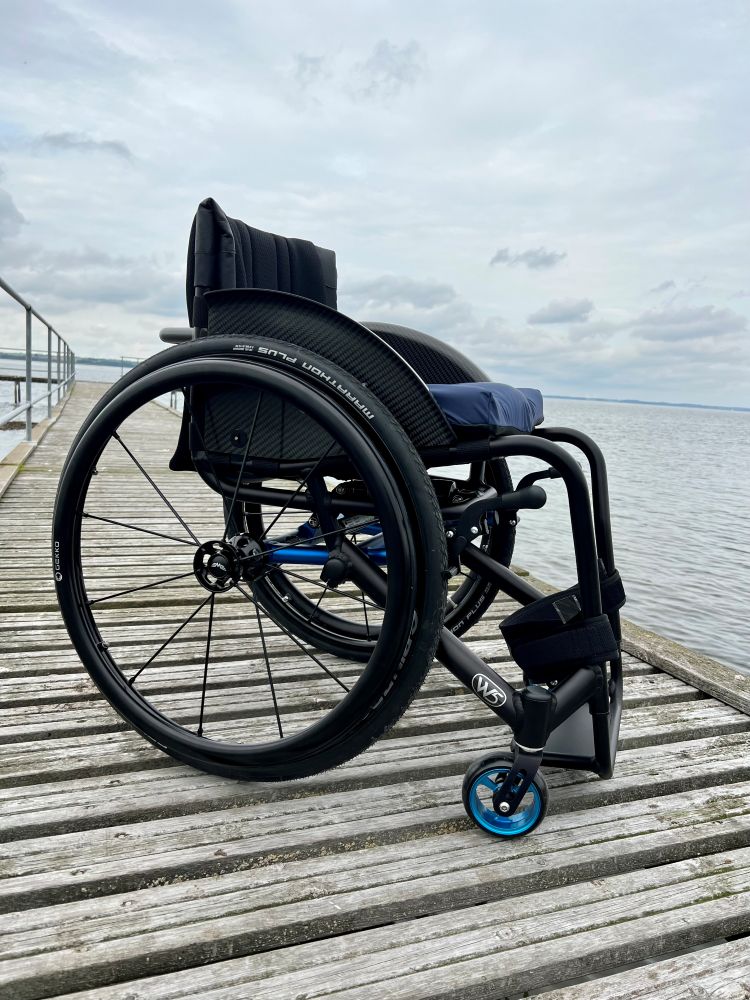

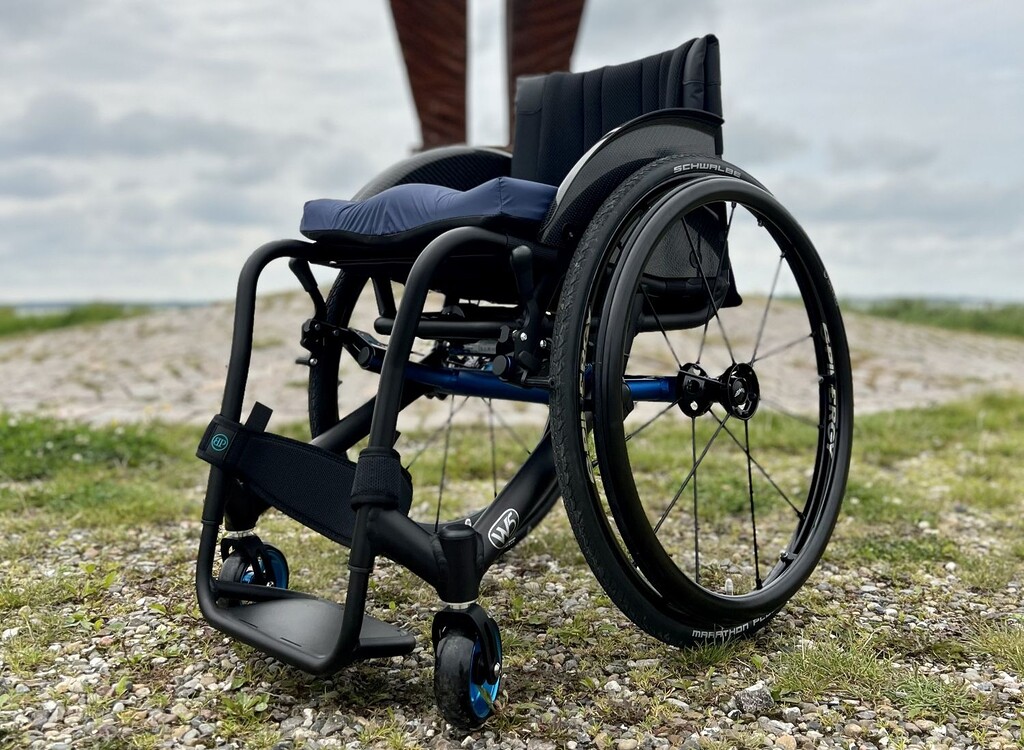

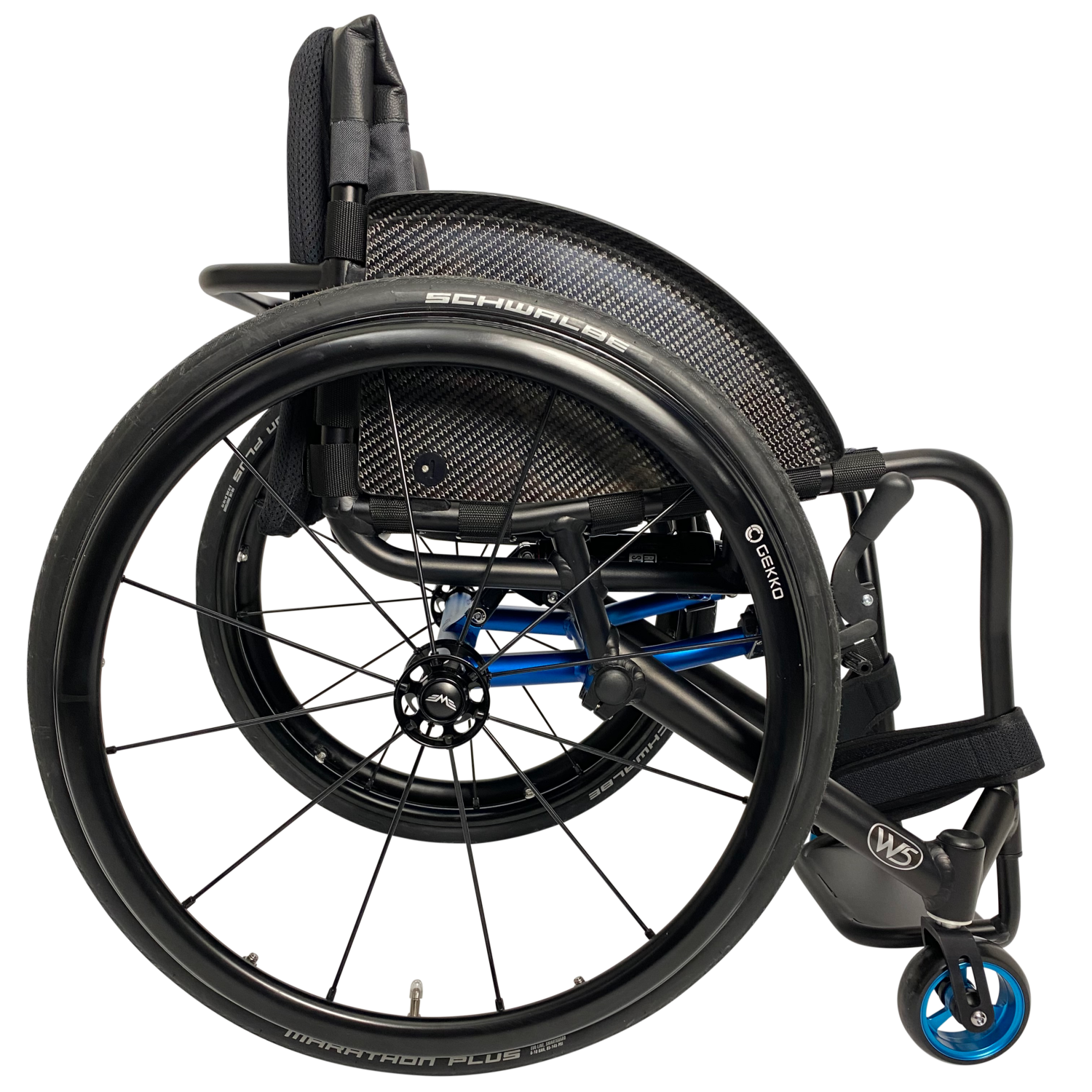

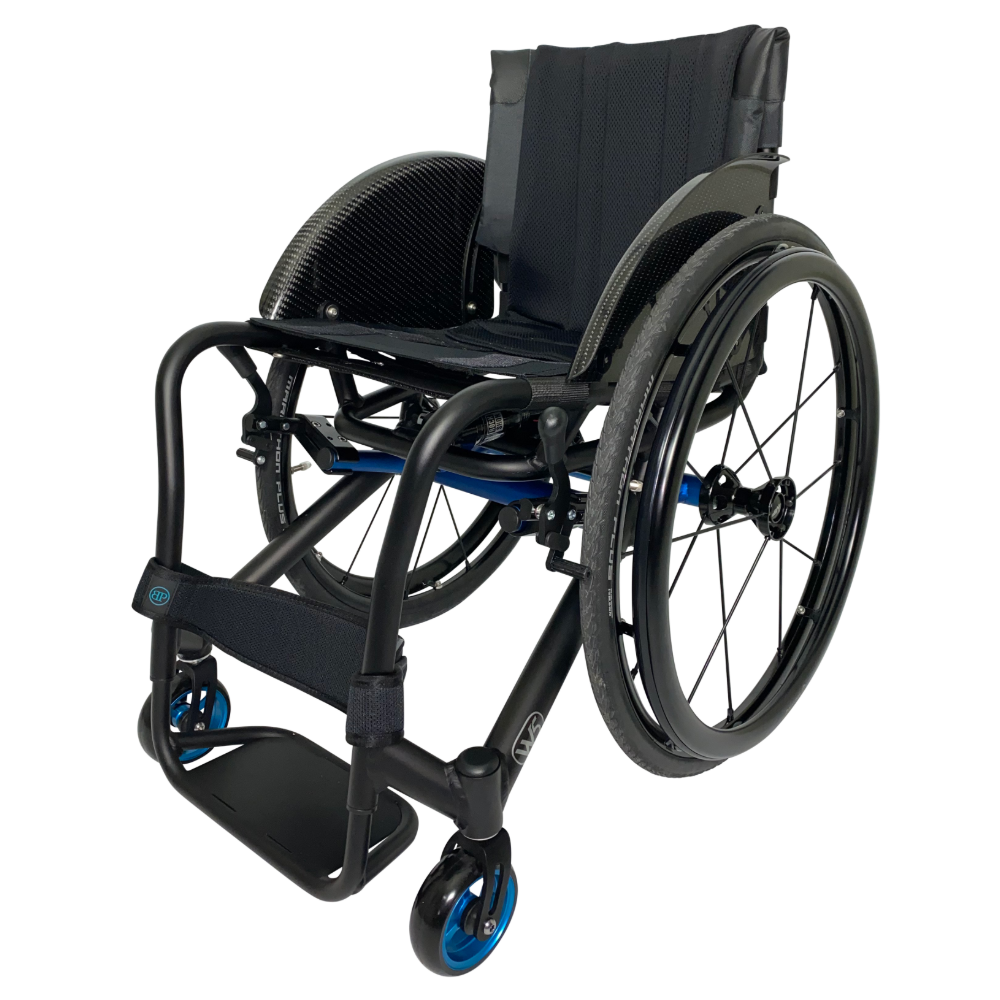

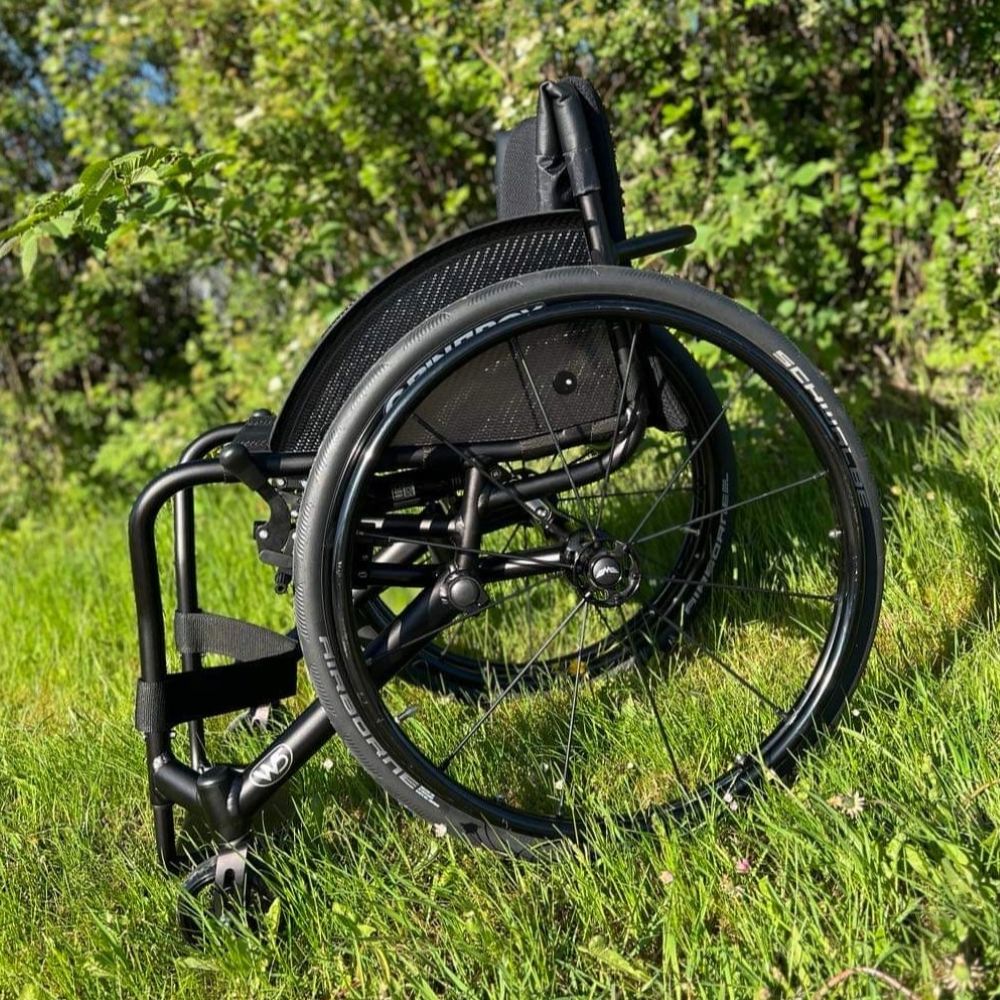

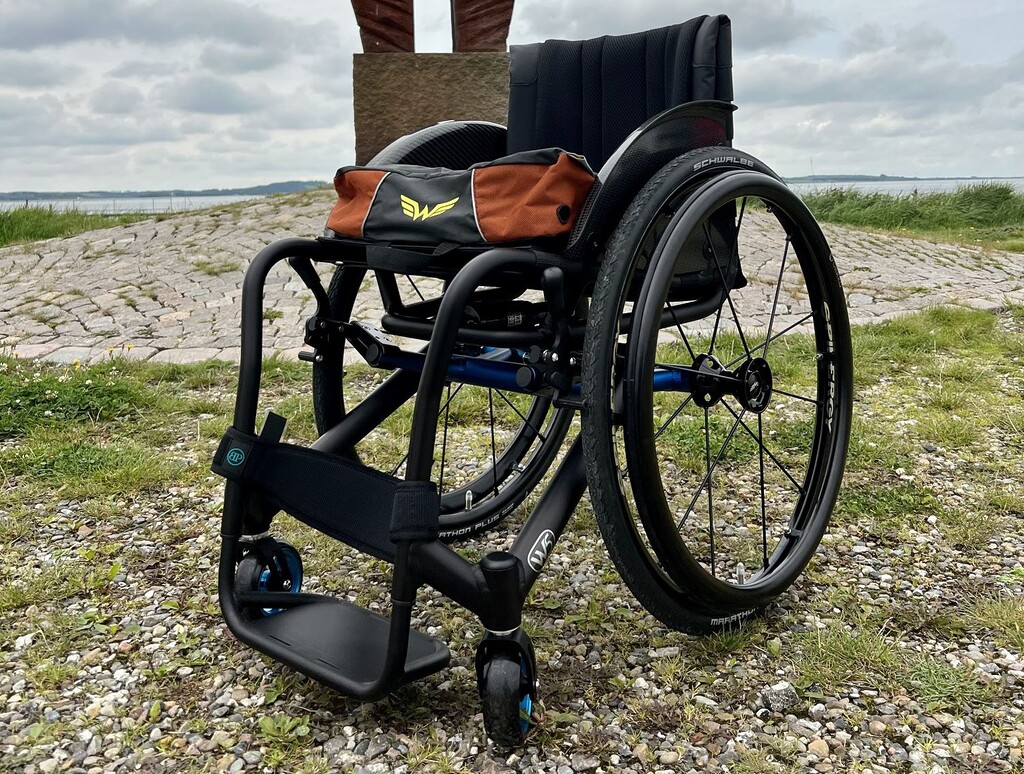

W5 Suspension is a lightweight, robust, rigid wheelchair with a closed box frame of 7020 aluminium for optimal strength. It is the latest model in the W5 series and is available in various sizes with multiple options for positioning, backrest, seat, wheels, footrest, side guards, balance point, and accessories. All wheelchairs in the W5 series are available as fully welded or with adjustable parts, always customised to the user’s measurements, needs, and preferences.
Custom Order
This product is often made to measure and tailored to your specifications*. Production and delivery for custom orders can vary depending on the manufacturer's production availability.
Please contact us if you would like an approximate delivery timescale for your order**.
Once your custom item is ready and your entire order is complete, the Recare team will contact you regarding your order.
Thank you for your patience. Our Recare team takes pride in creating high-quality, tailored solutions to meet your needs.
*Some products in these categories are not made-to-measure. You will be made aware when purchasing if measurements are required.
**Any delivery timescales provided are estimates; order timescales can change.
Service & Maintenance
Maintain Peak Performance with Regular Servicing
Regular maintenance is essential to keep your wheelchair performing at its best. By following this simple checklist, you can extend the life of your wheelchair and ensure your safety and comfort.
Daily Checks
- Ensure the wheelchair rolls without resistance.
- Check for vibrations, unusual noises, or any changes you notice.
- Confirm that the wheel locks are working correctly.
- Check the tyres: low pressure, flat spots, or signs of wear.
- Listen for irregular noises or rattles that may indicate loose components.
Weekly Checks
- Use a tyre gauge to check the tyre pressure.
- Check the tension of the seat upholstery. It should maintain a straight angle when the wheelchair is open and positioned.
Monthly Checks
- Inspect the wheel alignment to ensure proper tracking.
- Check the fork bearings to confirm they are moving freely without stiffness.
Yearly Checks
- Schedule a complete inspection with Recare's qualified technicians to address deeper maintenance needs and ensure optimal performance.
Tyre Pressure Adjustment
The owner or an assistant can perform Tyre pressure adjustments with the appropriate tools. Maintaining the correct pressure is crucial for smooth rolling and improved manoeuvrability.
Need Professional Servicing?
If you have concerns or require expert maintenance support, contact Recare's dedicated servicing team:
Email: [email protected]
Phone: 01993 880200
By following this maintenance routine, you can enjoy a smoother, safer, and more reliable wheelchair experience every day.
