Wolturnus W5 Junior

From £3,750.00

VAT exempt
Crash tested
Free nationwide assessments, delivery and set-up

Our friendly team are ready to discuss your specific needs.

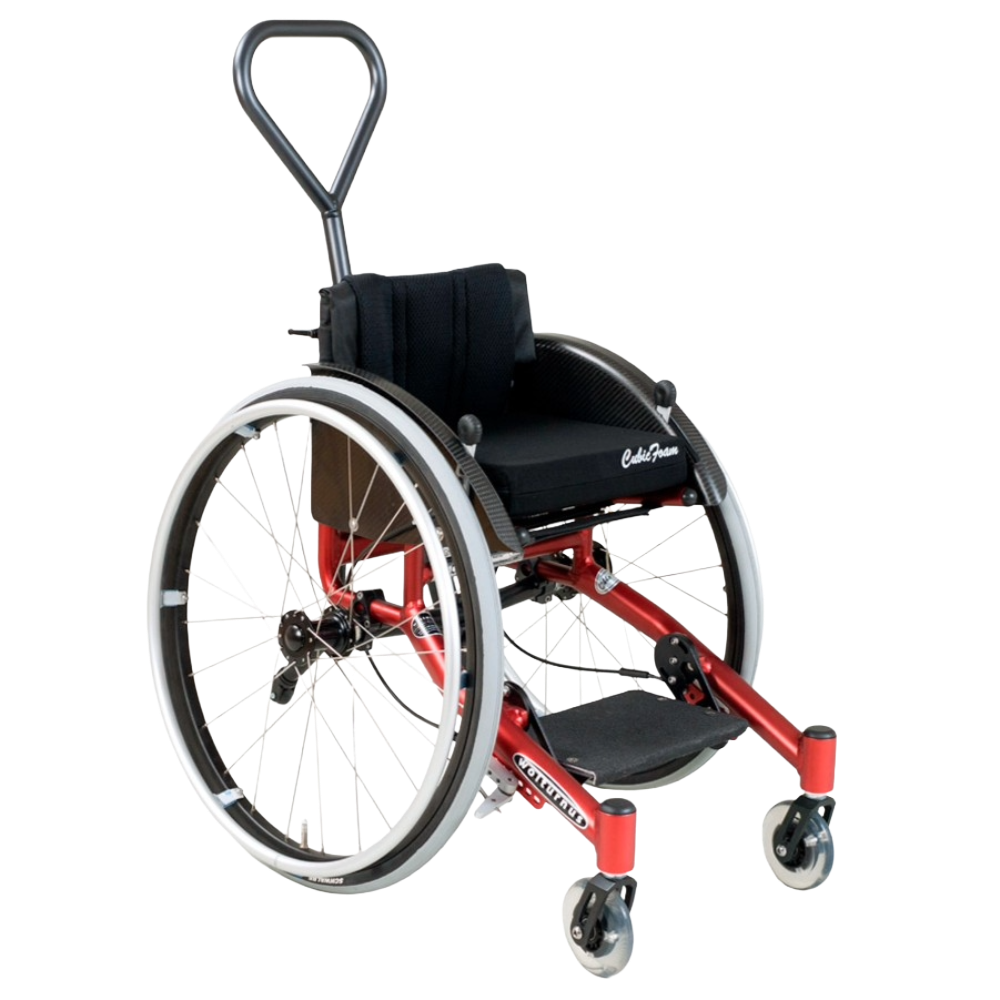

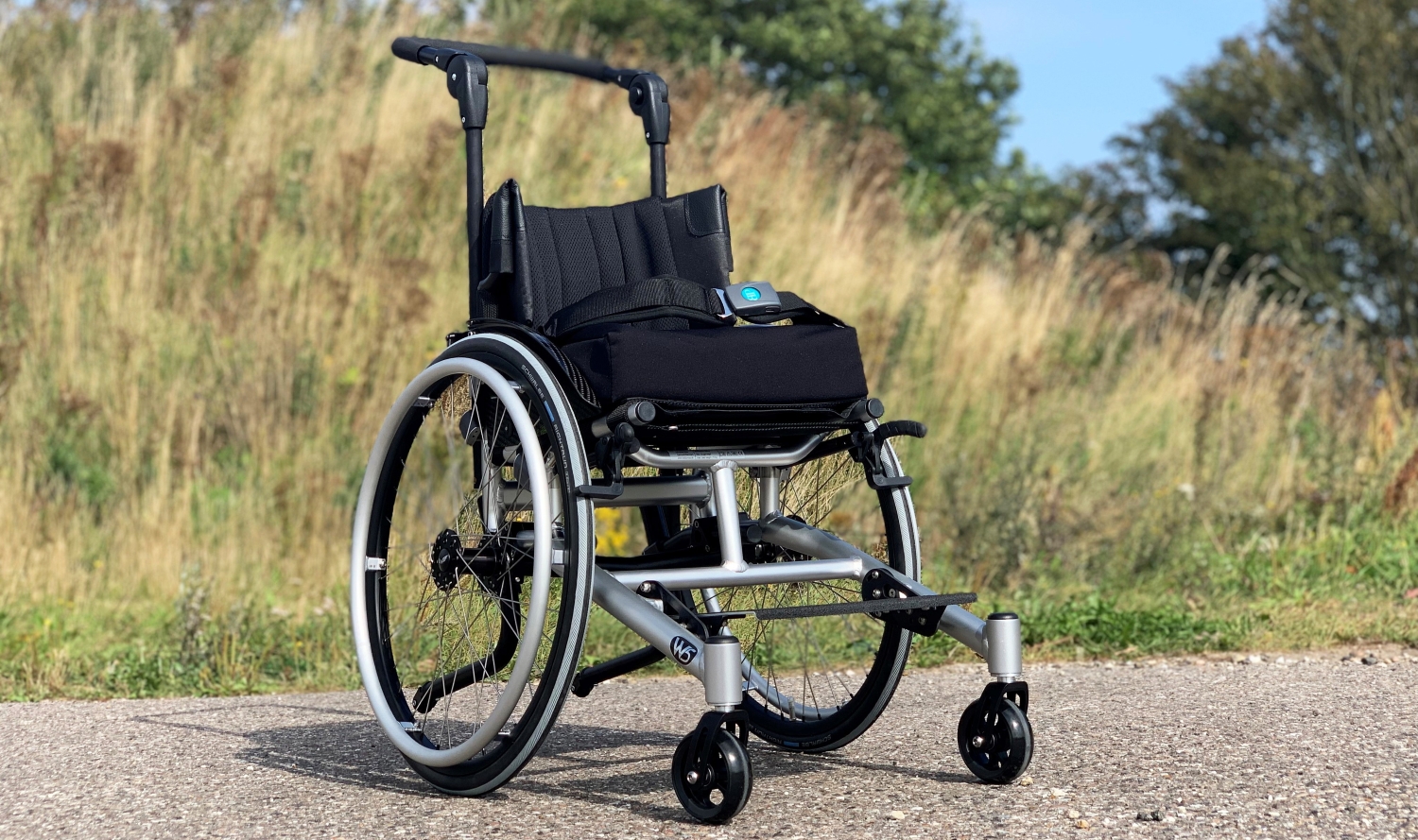

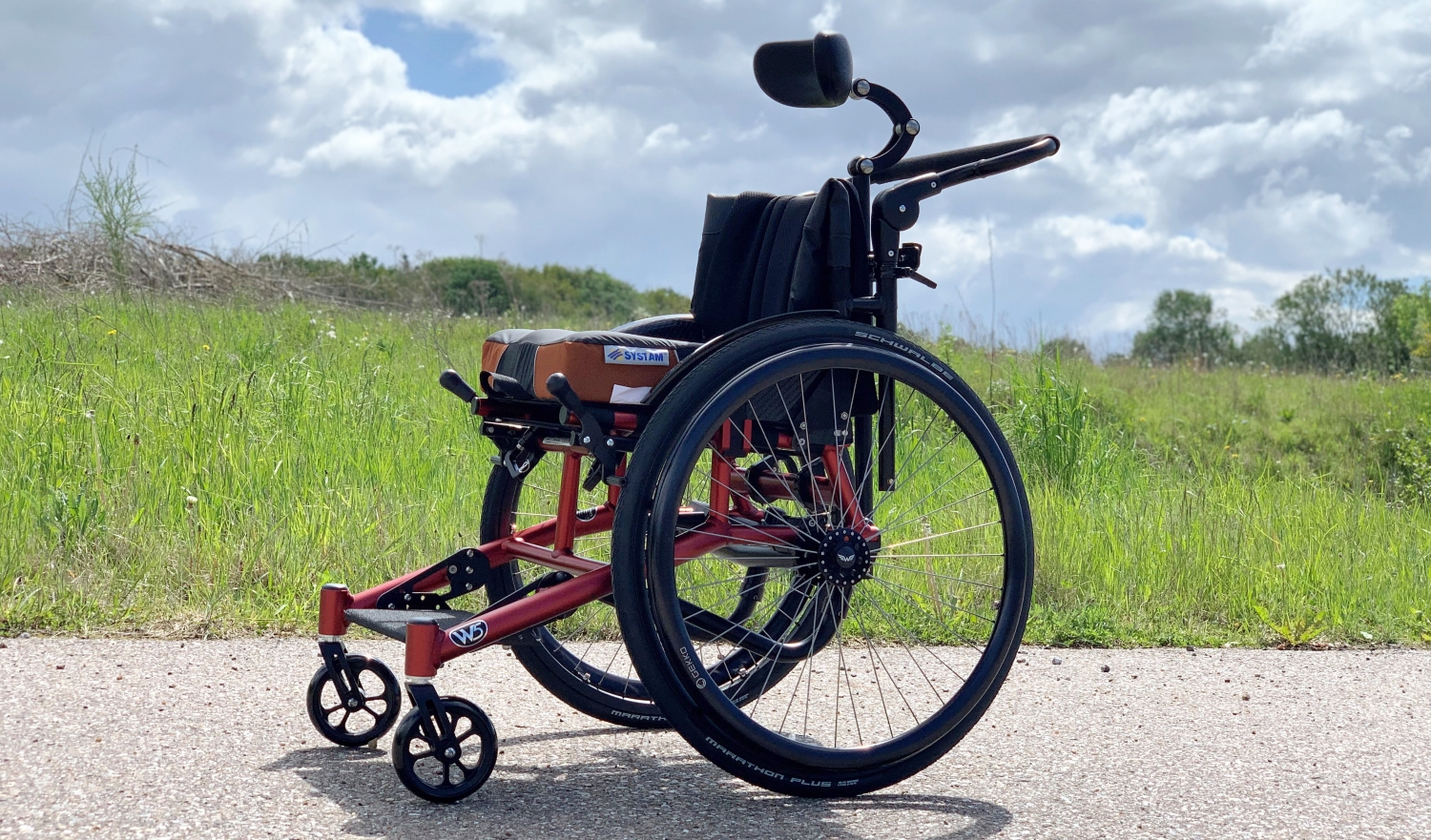

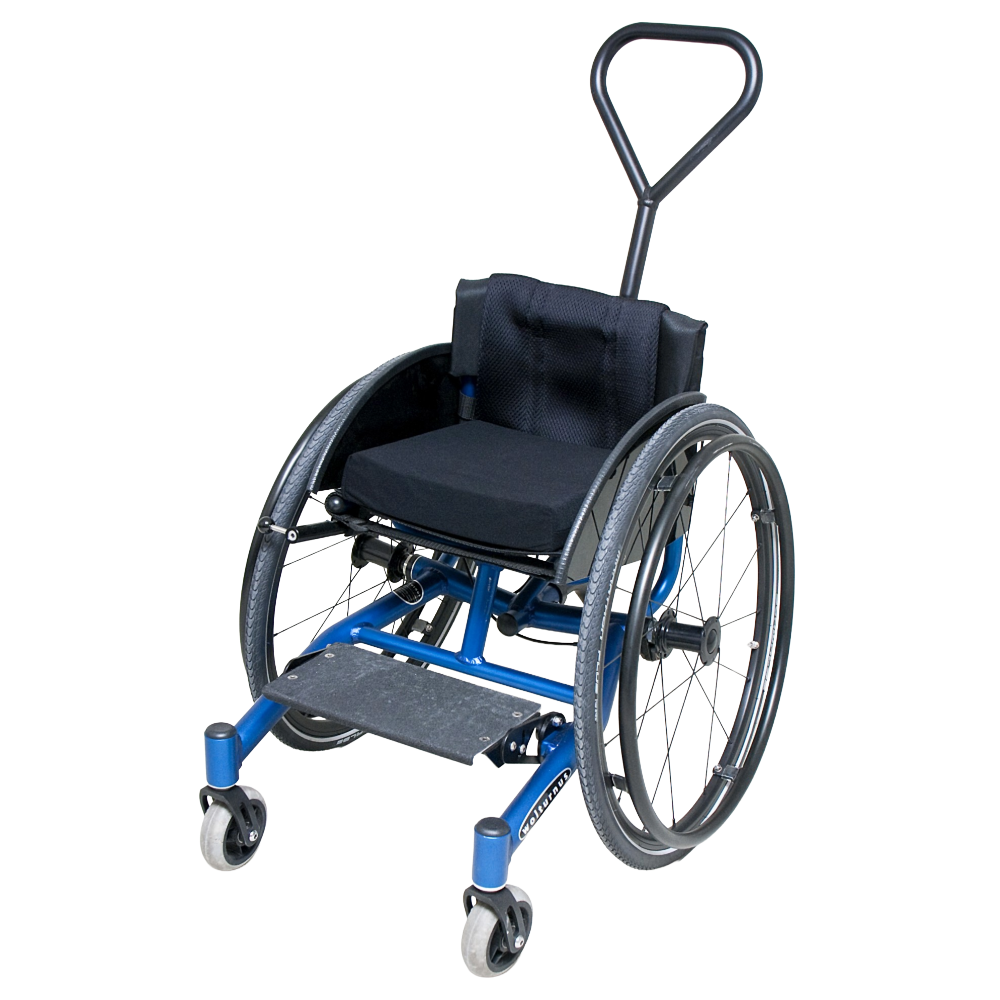

Tailor-made dynamic, stable and light rigid wheelchair for children

Ideal for the active paediatric user, the W5 Junior is a customised active rigid wheelchair designed for optimum synergy between strength and weight.

Categories: Children and young adults, Mobility, Paediatric Wheelchair, Wheelchairs, Wheelchairs Tags: Aluminium, Children, Configurable, Free Assessment Required, Made-to-Measure, Paediatric, Wolturnus

The W5 Junior wheelchair by Wolturnus is available in a welded or fully adjustable version.

The welded model has a fully welded backrest and rear axle—an adjustable rear axle, allowing the balance point’s continuous adaption. However, the wheelchair also has a welded rear axle. Then, the wheelchair has no moving parts. Therefore, it is extremely rigid and robust, so all of the child’s energy is harnessed for propulsion.

The adjustable version has a step-less adjustable balance point.

This means you can continually adapt the seating position and wheelchair set-up, for example, by mounting additional equipment as the child grows. Other adaptable features include adjustable depth and a footplate that can be adjusted by depth, angle and height.

Rear-Axle

You can choose between a fixed rear axle and an adjustable rear axle.

Ergonomic Seat

Ergonomic seat with adjustable strap back and strap seat. The ergonomic seat has an adjustable seat and back upholstery. This ensures ergonomic, upright posture, optimum pressure relief and freedom of movement.

Castors

The location of the castors out in front of the footplate ensures high stability and low rolling resistance.

Features

Customised rigid wheelchair

Ideal for the active child

Extremely sturdy

Fully welded or adjustable versions are available

Very easy to manoeuvre

Multi-adjustable footrest

High stability and low weight

Crash-tested and approved for fastening in a car

Propulsion weight from 5 kg

User weight maximum 70 kg

Need some help?

Contact us! Recare specialist consultants can arrange an initial call to help you find the optimal product for your personalised needs. As a trusted family-run business, we focus on your independence and quality of life.

See the Recare Wheelchair Guide to learn more.

Brand

Wolturnus

Technical Specifications

	W5	W5 SL	W5 S	W5 XXL	W5 K	W5 D	W5 JUNIOR
MAX USER WEIGHT	170 kg \| 375 lbs	80 kg \| 176 lbs	140 kg \| 308 lbs	250 kg \| 552 lbs	140 kg \| 308 lbs	140 kg \| 308 lbs	75 kg \| 165 lbs
PRODUCT WEIGHT	6.5 kg \| 14 lbs	6 kg \| 13.2 lbs	7 kg \| 15.4 lbs	12 kg \| 26.4 lbs	8 kg \| 17.6 lbs	9 kg \| 19.8 lbs	5 kg \| 11 lbs
SEAT WIDTH	13 - 20" \| 32 - 50 cm	13 - 18" \| 32 - 45 cm	13 - 20" \| 32 - 50 cm	19 - 28" \| 48 - 72 cm	13 - 20" \| 32 - 50 cm	13 - 20" \| 32 - 50 cm	6 - 14" \| 16 - 36 cm
SEAT DEPTH	13 - 20.5" \| 34 - 52 cm	13 - 20.5" \| 34 - 52 cm	13 - 20.5" \| 34 - 52 cm	15 - 22" \| 39 - 55 cm	13 - 20.5" \| 34 - 52 cm	13 - 20.5" \| 34 - 52 cm	6 - 14" \| 16 - 36 cm
SEAT HEIGHT FRONT	14 - 22" \| 36 - 55 cm	14 - 22" \| 36 - 55 cm	14 - 22" \| 36 - 55 cm	14 - 22" \| 36 - 55 cm	14 - 22" \| 36 - 55 cm	14 - 22" \| 36 - 55 cm	12 - 18" \| 30 - 45 cm
SEAT HEIGHT REAR	14 -22" \| 36 - 55 cm	14 -22" \| 36 - 55 cm	14 - 22" \| 36 - 55 cm	14 - 22" \| 36 - 55 cm	14 - 22" \| 36 - 55 cm	14 - 22" \| 36 - 55 cm	11 - 18" \| 28 - 45 cm
BACK HEIGHT	10 - 18" \| 25 - 46 cm	10 - 18" \| 25 - 46 cm	10 - 18" \| 25 - 46 cm	12 - 20" \| 30 - 50 cm	10 - 18" \| 25 - 46 cm	10 - 18" \| 25 - 46 cm	8 - 16" \| 20 - 40 cm
SUITABLE FOR KIDS	NO	NO	NO	NO	YES	NO	YES
ISO CRASH TESTED	YES	NO	YES	YES	YES	YES	YES

Custom Order

This product is often made to measure and tailored to your specifications*. Production and delivery for custom orders can vary depending on the manufacturer's production availability.

Please contact us if you would like an approximate delivery timescale for your order**.

Once your custom item is ready and your entire order is complete, the Recare team will contact you regarding your order.

Thank you for your patience. Our Recare team takes pride in creating high-quality, tailored solutions to meet your needs.

*Some products in these categories are not made-to-measure. You will be made aware when purchasing if measurements are required.

**Any delivery timescales provided are estimates; order timescales can change.

Service & Maintenance

Maintain Peak Performance with Regular Servicing

Regular maintenance is essential to keep your wheelchair performing at its best. By following this simple checklist, you can extend the life of your wheelchair and ensure your safety and comfort.

Daily Checks

Ensure the wheelchair rolls without resistance.
Check for vibrations, unusual noises, or any changes you notice.
Confirm that the wheel locks are working correctly.
Check the tyres: low pressure, flat spots, or signs of wear.
Listen for irregular noises or rattles that may indicate loose components.

Weekly Checks

Use a tyre gauge to check the tyre pressure.
Check the tension of the seat upholstery. It should maintain a straight angle when the wheelchair is open and positioned.

Monthly Checks

Inspect the wheel alignment to ensure proper tracking.
Check the fork bearings to confirm they are moving freely without stiffness.

Yearly Checks

Schedule a complete inspection with Recare's qualified technicians to address deeper maintenance needs and ensure optimal performance.

Tyre Pressure Adjustment

The owner or an assistant can perform Tyre pressure adjustments with the appropriate tools. Maintaining the correct pressure is crucial for smooth rolling and improved manoeuvrability.

Need Professional Servicing?

If you have concerns or require expert maintenance support, contact Recare's dedicated servicing team:

Email: [email protected]
Phone: 01993 880200

By following this maintenance routine, you can enjoy a smoother, safer, and more reliable wheelchair experience every day.
