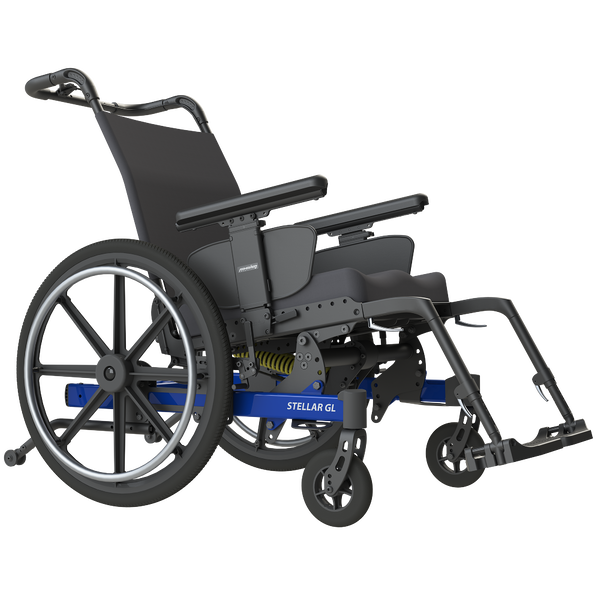

PDG Mobility Stellar GL & GLT

Please contact us for more information about this product.

VAT exempt
Crash tested
Nationwide assessments, delivery and set-up

Discover the Stellar GL & GLT Manual Tilt Wheelchairs, designed for comfort, stability, and manoeuvrability. Offering 45° tilt-in-space, these high-performance wheelchairs are ideal for individuals seeking enhanced mobility and everyday functionality.

Stellar GL boasts a rugged steel frame, providing excellent durability for heavier users or those with high muscle tone.

Stellar GLT features a lightweight aluminium frame, delivering mobility independence with superior ease of use.

SKU: WHCH-PDG-STELLARGL Categories: Bariatric Mobility, Bariatric Wheelchair, Mobility, Tilt-in-Space Wheelchairs, Wheelchairs Tags: Assessment Required, Bariatric, Configurable, Heavy-Duty, Made-to-Measure, PDG Mobility, Plus Size, Tilt-in-Space

Availability & Delivery: While many of our products are kept in stock, certain items are sourced directly from our suppliers and may have lead times of up to 6 weeks. If you require delivery by a specific date, please get in touch before ordering so we can confirm current availability.

Pressure relief, improved positioning, and independence

With a low seat-to-floor height, the Stellar series supports self-propulsion, table access, and participation in daily activities. Adjustable components ensure a customised fit, including seat-to-floor height adjustment, axle position adjustment, and force-adjustable gas struts for smooth tilt transitions. These chairs offer exceptional manoeuvrability, short wheelbase, and optional anterior/posterior setups. Transit tie-downs make them travel-ready, while the new lightweight frame option enhances portability.

Key Features

45° manual tilt-in-space for pressure relief and comfort
Low knee-rise design for improved table access
Adjustable seat-to-floor height and wheel location
Lightweight aluminium or rugged steel frame options
Force-adjustable gas struts for effortless tilt
Optional power tilt and adjustable push bar for caregivers
Transit tie-downs for secure transportation
Sizes available up to 32" width

Choose the Stellar GL for durability and stability or the Stellar GLT for a lightweight, high-mobility solution. Both models deliver unparalleled versatility, ensuring your mobility needs are met without compromise.

Need some help?

Contact us! Recare specialist consultants can arrange an initial call to help you find the optimal product for your personalised needs. As a trusted family-run business, we focus on your independence and quality of life.

See the Recare Wheelchair Guide to learn more.

Brand

PDG Mobility

PDG Mobility specialises in high-performance wheelchairs engineered for optimal support, comfort, and functionality. Renowned for their tilt-in-space and heavy-duty wheelchair designs, PDG products are built to meet the unique mobility needs of users at home, in care settings, or outdoors. PDG Mobility is ideal for individuals seeking tailored mobility solutions.

The Power Tilt Upgrade enhances the tilt feature for easy operation by users or attendants. Designed for reliability and convenience, the system includes two battery packs and an offboard charger, ensuring the chair is always ready. The factory-installed option by PDG Mobility eliminates the need for third-party installation, reducing costs and delays. For existing chairs, a field installation kit is available.

Key Features

Factory-installed by PDG – No third-party delays or expenses
Two battery packs with an offboard charger – Charge one battery while the other is in use
Multiple switch options – Toggle, button, and egg switches with auto-reversing functionality
Field installation kit available for retrofitting

Compatibility

Bentley and Bentley LT – Up to 113 kg (250 lbs) capacity
Fuze T50 and T50n – Up to 158 kg (350 lbs) capacity (fixed and adjustable frame)
Stellar GL, GLT, and LEAP – Up to 113 kg (250 lbs) capacity

The Power Tilt Upgrade is perfect for those seeking effortless tilt control, ensuring comfort and ease of use in manual and attendant-controlled settings.

Technical Specifications	Stellar GL	Stellar GLT
Dynamic Tilt	45°	45°
Maximum User Weight	204 kg \| 450 lbs	113 kg \| 250 lbs
Seat Width	14 - 24" \| 35 - 61 cm	14 - 22" \| 35 - 56 cm
Seat Depth	16 - 22" \| 40 - 56 cm	16 - 22" \| 40 - 56 cm
Seat Height	13 - 20" \| 33 - 51 cm	13 - 20" \| 33 - 51 cm
Backrest Recline	90° - 122°	90° - 122°
Overall Width	SW + 9.5 - 10.5” \| 24 - 27 cm	SW + 9.5 - 10.5” \| 24 - 27 cm
Overall Chair Weight	23 kg \| 51 lbs	16 kg \| 34 lbs
Transit tie downs	WC-19 & ISO-7176-19	WC-19 & ISO-7176-19

Manual Wheelchair Maintenance

Maintain Peak Performance with Regular Servicing

Regular maintenance is essential to keep your wheelchair performing at its best. By following this simple checklist, you can extend the life of your wheelchair and ensure your safety and comfort.

Daily Checks

Ensure the wheelchair rolls without resistance.

Check for vibrations, unusual noises, or any changes you notice.

Confirm that the wheel locks are working correctly.

Check the tyres: low pressure, flat spots, or signs of wear.

Listen for irregular noises or rattles that may indicate loose components.

Weekly Checks

Use a tyre gauge to check the tyre pressure.

Check the tension of the seat upholstery.
- It should maintain a straight angle when the wheelchair is open and positioned.

Tyre Pressure Adjustment

Tyre pressure adjustments with the appropriate tools.

Maintaining the correct pressure is crucial for smooth rolling and improved manoeuvrability.

Monthly Checks

Inspect the wheel alignment to ensure proper tracking.

Check the fork bearings to confirm they are moving freely without stiffness.

Annual Servicing

Book your routine wheelchair service with Recare's experienced technicians. This is a full, comprehensive inspection and service to ensure ongoing reliability and comfort for the lifetime of your powerchair.

Need Expert Servicing or Repairs?

Recare offers professional maintenance and repairs for all types of manual wheelchairs. Whether it's a routine service, repairs, parts and accessories, our dedicated team is here to help.

Email: info@recare.co.uk
Call: 01993 880200

By following this maintenance routine, you can enjoy a smoother, safer, and more reliable wheelchair experience every day.
