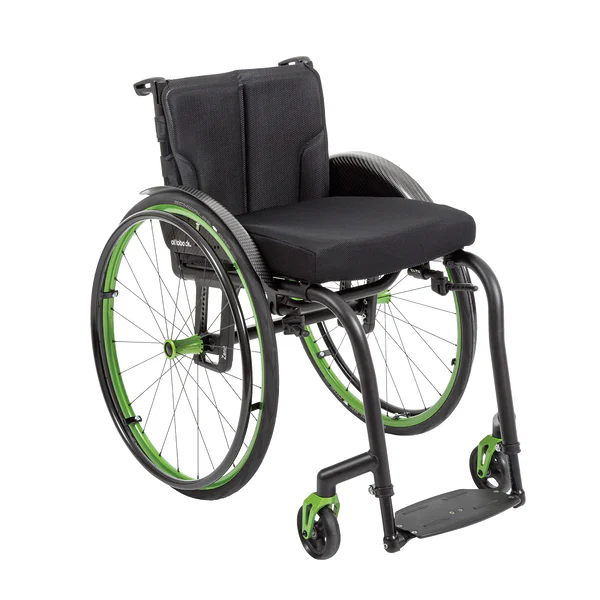

Ottobock Zenit Wheelchair

From £2,695.00£4,472.00 Excl. VAT

  • VAT exempt
  • Free nationwide assessments, delivery and set-up
Clear

Ultra-lightweight modern wheelchair with the option to be both a folding or rigid manual wheelchair

The Ottobock Zenit is impressively lightweight. With no sacrifice for the stability of the wheelchair, and with a wide range of options available, this chair can be made for any individual’s requirements.

All of this, combined with the Ottobock Zenit’s minimalist design and the frame being available in Aluminium as well as the carbon frame option, gives the Ottobock Zenit the ultimate lightness and sleek look if that is what the individual is looking for.

OttoBock_Logo

Zenit Wheelchair Ottobock 4

Carbon Fibre or Aluminium Models Available

The Ottobock Zenit is impressively lightweight without sacrificing stability and offers a variety of options for the user. All of this is combined in the Ottobock Zenit with a minimalist design and the available material mix of either Carbon Fibre or Aluminium wheelchair.

Carbon fibre frame

The classical sleek and lightweight look that carbon naturally has.

The aluminium frame

Gives the individual the opportunity to customise their wheelchair with a wide choice of colour options including anodised colours.

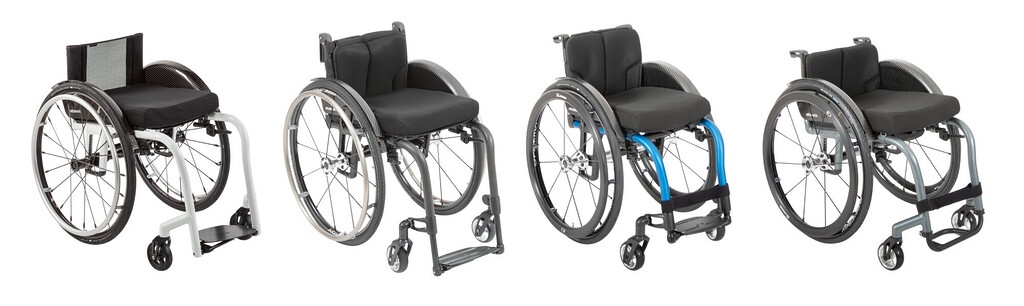

Zenit Wheelchair Ottobock 7

Easy-Go Folding Mechanism

The patented Easy-Go folding mechanism offers an alternative to the standard cross brace.  This innovative feature allows the chair to be folded and unfolded with very little effort.

With a tug on the cord, the mechanism is released so the wheelchair can be folded.  This should be carried out with the wheelchair to the side of the person and folding the chair in towards them.

This feature gives the added bonus when loading the wheelchair into a vehicle, as the person does not need to change their centre of gravity as they would normally.  The footplate automatically folds with the wheelchair, meaning the person does not need to worry about moving the footplate before folding the chair.

Zenit Wheelchair Ottobock 5

Seat Height and Centre of Gravity

The seat height and centre of gravity of the Zenit is adjustable and can be carried out via the rear wheel adapter.  This has been designed in such a way that the centre of gravity can be set to 1.2cm more actively or passively by turning the adapter.

This benefits all people whether experienced wheelchair drivers or people who are new to driving a wheelchair.  This adapter can be moved on the frame to suit all.

Folding Backrest

The Zenit’s back support is angle adjustable (-10, -5, 0, +5, +10°).

When the back support is folded completely down, the Zenit has an extremely small transportation size.

Easy  to Stow in a Vehicle

During transport, the back support remains locked for as long as desired.

With the rear wheels remove the frame of the Zenit is extremely light and easy to lift into the vehicle.

The weight ranges from 6.3kg – 4.9kg depending on the configuration of the chair.

Push Handles

Both folding and short push handles can be ordered.

The short push handles were optimised for a low weight during the development process and can be selected as options.

Upholstery

The ultra-light seat and back upholstery have been optimised for low weight and can be chosen as an option for an extremely light build of the Zenit wheelchair.

Storage Space

As additional storage space is sometimes required, the Zenit has been designed with an attractively designed back bag which is integrated into the back upholstery.

This is not only easily accessible but also easy to open and close with its magnetic fastenings.

Footrest

The innovative and patented design of the footrest for the Zenit gives the wheelchair full stability while also the added feature that the wheelchair will fold without the person worrying about moving the footrest out of the way before folding.

Brand

Ottobock

OttoBock_Logo

Technical Specification

 ZenitZenit CLTZenit RZenit R CLT
Model Key FeaturesFolding
Adjustable
Folding
Fixed Welded
Rigid
Adjustable
Rigid
Ultra-Lightweight
Fixed Welded
Frame MaterialAluminium
Carbon Fibre
AluminiumAluminium
Carbon Fibre
Aluminium
Overall length28" - 41" | 72 - 104 cm25" - 41" | 64 - 104 cm25" - 41" | 64 - 104 cm25" - 41" | 64 - 104 cm
Overall width19" - 29" | 49 - 73 cm20" - 29" | 50 - 73 cm20" - 29" | 50 - 73 cm20" - 29" | 50 - 73 cm
Overall height28" - 41" | 72 - 104 cm25" - 41" | 62 - 105 cm25" - 41" | 62 - 105 cm25" - 41" | 62 - 105 cm
Seat width12" - 18" | 32 - 46 cm12" - 18" | 32 - 46 cm12" - 18" | 32 - 46 cm12" - 18" | 32 - 46 cm
Seat depth14" - 20" | 36 - 50 cm14" - 20" | 36 - 50 cm14" - 20" | 36 - 50 cm14" - 20" | 36 - 50 cm
Front seat height15" - 21" | 38 - 54 cm15" - 22" | 38 - 54 cm15" - 22" | 38 - 54 cm15" - 22" | 38 - 54 cm
Rear seat height14" - 20" | 37 - 50 cm14" - 20" | 37 - 50 cm14" - 20" | 37 - 50 cm14" - 20" | 37 - 50 cm
Back Support height10" - 20" | 25 - 50 cm10" - 20" | 25 - 50 cm10" - 20" | 25 - 50 cm10" - 20" | 25 - 50 cm
Lower leg length11" - 20" | 28 - 51 cm11" - 20" | 28 - 51 cm11" - 20" | 28 - 51 cm11" - 20" | 28 - 51 cm
Anterior frame angle75°
85°
75°
85°
75°
85°
75°
85°
Maximum Weight capacity120 kg | 264 lbs100 kg | 220 lbs120 kg | 264 lbs100 kg | 220 lbs
Product Weight8.9 kg | 19.5 lbs8.9 kg | 19.5 lbs8.5 kg | 18.8 lbs7.4 kg | 16.3 lbs
Transport weight
(without drive wheels)
8.9 kg | 20 lbs6.3 kg | 13.9 lbs6 kg | 13.2 lbs4.9 kg | 10.8 lbs

Brochure

Download

Zenit Wheelchair's Catalogue

Download

Zenit Order Form

Download

Zenit CLT Order Form

Download

Zenit Rigid Order Form

Download

Zenit Rigid CLT Order Form

Download

User Manual

Download
