Home » Mobility Products » Mobility » Children & Young Adults » Seating » NXT üFit™ Backrest

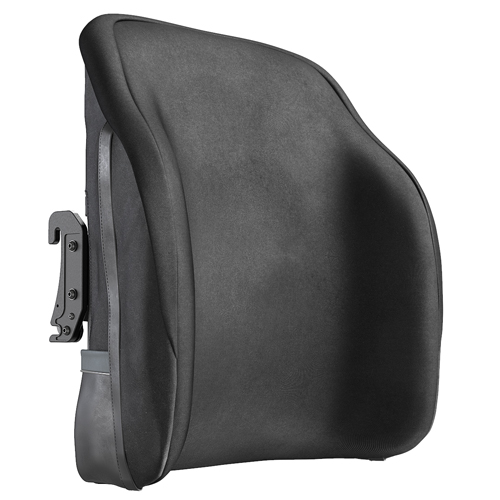

NXT üFit™ FRONT
NXT üFit™ STANDARD
NXT üFit™ DEEP
NXT üFit™ REAR

NXT üFit™ Backrest

From Price range: £667.00 through £863.00

  • VAT exempt
Clear

2-point and 4-point fixed hardware: 1” depth adjustment.
2-point fixed mount: 25 degrees of posterior & anterior angle adjustment.
4-point hardware: 15 degrees of posterior & anterior angle adjustment (depending on spacing between the brackets).

Options and Accessories

Selected accessories will fit the backrest ordered.

Tailored Pelvic Support for Unique Spinal Needs

The NXT üFit™ Customisable Pelvic Back Support, available from Recare, is designed to provide personalised pelvic support for users with scoliosis, kyphosis, and other spinal irregularities. Featuring innovative üCube™ foam blocks, this back support allows precise customisation to fit each user’s unique needs. The secondary foam layer ensures a smooth contour, while the aluminium shell provides durable and reliable support.

SKU: N/A Categories: , , Tags: , , ,

Availability & Delivery: While many of our products are kept in stock, certain items are sourced directly from our suppliers and may have lead times of up to 6 weeks. If you require delivery by a specific date, please get in touch before ordering so we can confirm current availability.

Key Features

  • Removable üCube™ Foam Blocks: Adjust the contour shape to fit the user’s specific requirements. Foam blocks can be removed or cut for further customisation.
  • Secure and Easy Adjustments: üCubes attach to the aluminium shell with special pins, eliminating the need for Velcro while ensuring easy removal and replacement.
  • Double Zipper Access: Centre foam overlay with double zippers allows quick access for adjustments.
  • Side Foam Overlays: Provide added stability and enhanced comfort.
  • Standard and DEEP Contour Options: DEEP model offers an adjustable lateral depth of 7.75"–8.75" (19.7–22.2 cm) for improved midline support and positioning.
  • Durable Aluminium Shell: Ensures long-lasting support and stability.

What’s Included?

  • Aluminium shell.
  • Depth-adjustable lateral contours (DEEP models only).
  • Standard 2" üCube™ polyurethane foam blocks.
  • Medium-density foam cushion overlay.
  • 4-Way Stretch Startex Fabric Cover for breathability and durability.
  • QuickFit Mounting System with installation hardware.
  • One-hand quick-release mechanism for easy adjustments.

Accessories & Options

  • Head supports.
  • Incontinent infection control covers.
  • Optional Visco Gel midsection for enhanced comfort.
  • Additional 1" and 3" üCube™ foam block kits.
  • Replacement covers.
  • Standard and DEEP Contour options.

Why Choose the NXT üFit™?

The NXT üFit™ Customisable Pelvic Back Support offers unmatched versatility and personalised comfort for wheelchair users with complex spinal needs. Its modular design and innovative materials ensure optimal support, positioning, and ease of use.

Order your NXT üFit™ Customisable Pelvic Back Support from Recare today for a tailor-made pelvic and spinal support solution.

Brand

NXT Seating

Discover NXT Seating Series offer premium wheelchair backrests and cushions designed for comfort, support, and optimal pelvic positioning. The range includes backrests with posterior, posterior lateral, and posterior deep lateral supports, available in full or scapula cut-out shapes. Perfectly crafted to enhance natural motion and provide exceptional support for all-day comfort.
üFitüFit DEEP
Weight3.3 kg | 7.2 lbs3.6 kg | 7.9 lbs
Height16" - 20" | 40.5 - 51 cm16" - 20" | 40.5 - 51 cm
Fits Wheelchair Width14" - 22" | 35.5 - 56 cm14" - 22" | 35.5 - 56 cm
Contour Depth6.25" | 15.9 cm7.75" - 8.75" | 19.5 - 22 cm
Max. User Weight
14" - 20" Wide136 kg | 300 lbs136 kg | 300 lbs
22" Wide181 kg | 400 lbs181 kg | 400 lbs

Backrest Sizes

WidthHeightHeightHeightFits Wheelchair Widths
14" | 35.5 cm16" | 40.5 cm18" | 46 cm20" | 51 cm14" - 16" | 35.5 - 40.5 cm
16" | 40.5 cm16" | 40.5 cm18" | 46 cm20" | 51 cm16" - 18" | 40.5 - 46 cm
18" | 46 cm16" | 40.5 cm18" | 46 cm20" | 51 cm18" - 20" | 46 - 51 cm
20" | 51 cm16" | 40.5 cm18" | 46 cm20" | 51 cm20" - 22" | 51 - 56 cm
22" | 56 cm16" | 40.5 cm18" | 46 cm20" | 51 cm22" - 24" | 56 - 61 cm

Brochure

Download

NXT Seating Catalogue

Download

User Manual

Download
