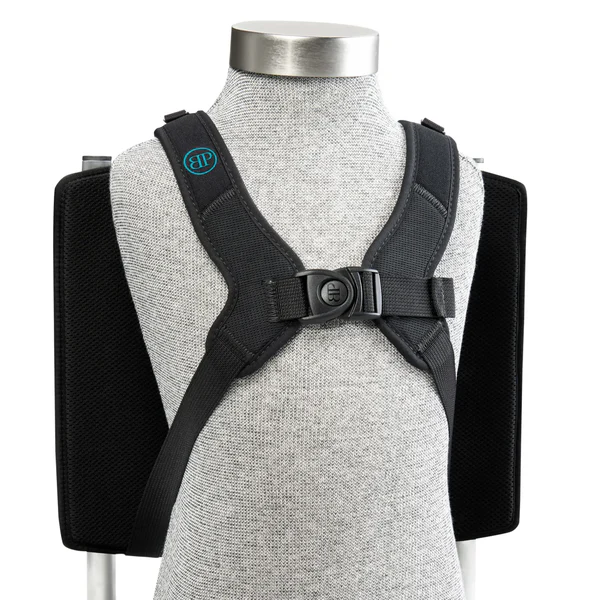

Bodypoint PivotFit™ Shoulder Harness

From £136.70 – £141.80

  • VAT exempt
Clear

The PivotFit™ Shoulder Harness represents the latest in innovative design from Bodypoint. The PivotFit Shoulder Harness offers a body-contouring shape for optimal support and a comfortable fit by distributing pressure across a greater surface area than our traditional H-style Harness.

SKU: N/A Categories: , , , , , , , , , , , Tags: , ,
Boditrak-Logo

Continuous smooth padding prevents dirt and debris from getting trapped in the harness. The PivotFit harness can be purchased in a Dynamic or Standard style, with either front pull adjustment or rear pull adjustment to suit the needs of most users.

As the name suggests, the star feature of the PivotFit is the pivot buckle on the sternum strap, which prevents the harness from becoming twisted and uncomfortable during movement.

For a more comfortable and practical alternative to an H-style harness, the PivotFit has it.

Benefits of the PivotFit

Ergonomic fit

The curved straps of the PivotFit contour the shape of the body and have a larger surface area than traditional H-style harnesses.

This means that the straps redistribute pressure more evenly, making the harness more comfortable to wear and reducing the chances of skin damage due to resistance against the straps.

Pivot buckle for comfort

Bodypoint® developed the Pivot buckle to tackle a common problem with H-style harnesses twisting and bunching up during use, a problem that is uncomfortable for the user and damaging for the material of the harness.

Pivot buckles move with the user, allowing the harness pads to stay flat against the chest even when the user is twisting around.

Dual-zone elasticity (PivotFit dynamic only)

The PivotFit Dynamic harness has dual-zone elasticity, with one elastic zone in the upper part of the strap and a second stabilising zone in the lower panel.

The upper elastic zone of stretch allows the user to lean forward to perform daily activities, and the lower panel stabilises the bottom half of the PivotFit so the harness does not ride up during use.

Multi-directional (MD) pull straps.

No need to choose in advance between Front-Pull and Rear-Pull — the versatile MD pull straps work both ways! Easy to set up and change pull styles on the spot to adapt to individual user needs.

Brand

Boditrak

Boditrak-Logo

Bodypoint Harness Guide

How to Measure a Person for a Harness

Measure the distance between the shoulders, as shown in the picture. Once you have obtained your measurement, consult the table to find your size.

Size

Shoulder Width

XXS

 8.2 – 9.5″ (21 – 24 cm)

XS

 9.5 – 11″ (24 – 28 cm)

S

 11 -13″ (28 – 33 cm)

M

 13 – 16″ (33 – 41 cm)

L

 16 – 19″ (41 – 48 cm)

XL

 19 – 22″ (48 – 56 cm)



Measuring for shoulder harness

Dynamic or Standard Options

PivotFit Dynamic

This option contains controlled stretch in the upper straps, allowing users to lean forward to perform daily activities.

PivotFit Standard

This option contains no stretch in the upper straps and is more suitable for corrective positioning.

Bodypoint Harnesses: MD Series

Bodypoint’s trusted and popular harnesses now come with multi-directional (MD) pull straps. There is no need to choose in advance between front-pull and rear-pull — the versatile MD pull straps work both ways! Easy to set up and change pull styles on the spot to adapt to individual user needs.NB: New MD Harnesses apply to Stayflex™, PivotFit™, and Trimline.

Front Pull Rear Pull

Shoulder Harness Strap Guides

Optimise the mounting position of chest and shoulder harnesses and use them on more types of chairs with Bodypoint Strap Guides. Our simple, easy-to-install solution provides maximum adjustability and allows harnesses to be used where they couldn’t before – on chairs with low, curved or contoured backs.

With Bodypoint Strap Guides, you can fine-tune the height, horizontal position, and angle of strap attachment to even out pressure distribution over the shoulder, improving support and comfort for the user. Adjust each side independently for a custom fit.

Available in two lengths to accommodate different backrest sizes and shapes. Compatible with front- and rear-pull strap styles and all Bodypoint end fittings. Attach directly to backrests with included M6 fastener kit* and spacers, or use optional Strap Guide Mounting Adapters (sold separately) to increase mounting and adjustment options. Strap Guides are sold in pairs.

The Bodypoint difference is in the details:

  • Simple, easy-to-install design
  • Compatible with a variety of backrests, harnesses, and end fittings
  • Long mounting slots increase adjustability
  • Thin design fits into tight spaces
  • Integrated holes allow easy harness attachment without extra drilling
  • Super strong spring steel absorbs shock, giving users greater comfort and preventing backrest damage

* Standard fasteners compatible with most backrests. For attachment to Permobil Corpus chairs, use the HW101P Fastener Pack, sold separately

HW100 200 2 03 A S 2

Strap Guide Options
Available in two lengths to accommodate different backrest sizes and shapes. They are sold in pairs with a complete M6 fastener kit* and spacers (to accommodate wrapped upholstery or edge trim).

Long Strap Guides

Long (200mm/8”) Strap Guides

Short Strap Guide

 Short (150mm/6”) Strap Guides

 Mounting Adapters (optional)

Strap Guide Mounting Adapters allow you to utilize existing headrest holes, minimizing the need for drilling without limiting options for strap guide position. They also make fine-tuning after attaching a snap.

They are sold separately, with M6 fasteners and nut plates for harness attachment.

 Large Mounting Adapter

Large mounting adapter

Short Mounting Adapter

Small mounting adapter
